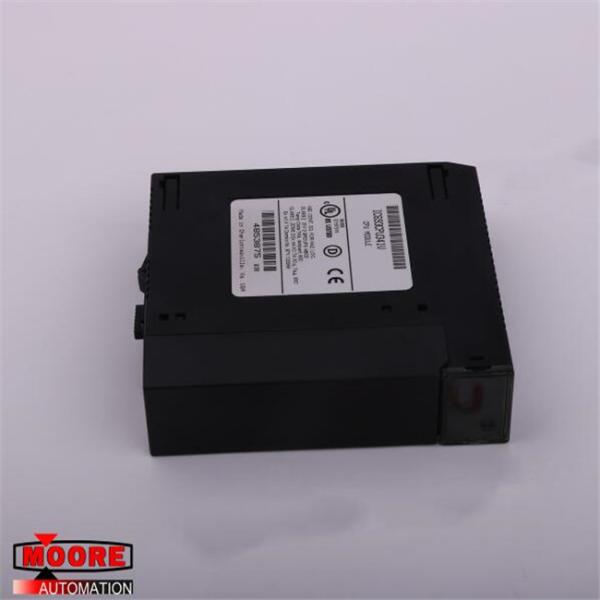

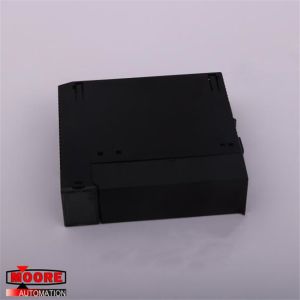

IC693CPU341 GE CPU 341 Module
⇒ Click here for good price IC693CPU341
| Brand/Manufacturer | GE/USA |
| Part Number | IC693CPU341 |
| Alternate Part Number | IC693CPU341 |
| Description | MOTOR SERVO |
| Dimennsions | 3.6x13x13.5cm |
| Weight | 0.25 kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
General: The IC693CPU341 module, a member of the GE Fanuc 90-30 Series, is
a single slot CPU module which is equipped with 5 baseplates. It
contains 4 remote and/or expansion baseplates in addition to the 1
CPU baseplate. It is equipped with an 80C188XL processor.
Power: It runs at 20 MHz and requires a load of 490 milliamps from the +5
VDC rated power supply. The module operates at an ambient
temperature range of 0 to 60 degrees Celsius (or 32 to 140 degrees
Fahrenheit).
Memory: This CPU’s typical can rate is 0.3 milliseconds per 1K of logic
(also known as Boolean contacts). With a maximum user program
memory of 80K bytes, the IC693CPU341 has a register memory (%R) of
9999 words; discrete global memory (%G) of 1280 bits, internal
coils (%M) of 1024 bits, output (temporary) coils (%T) of 256 bits,
and system status references (%S) of 128 bits (with %S, %SA, %SB,
%SC having 32 bits each).
I/O: Analog inputs (%AI) and outputs (%AQ) is 1024 and 256 words
respectively. The discrete input (%I) and output (%Q) are 512 each.
It has 16 words (%SR) system registers which are used for reference
table viewing only and cannot be referenced in user logic program.
Specific: This CPU has a singular built-in serial port, which requires a
connector to the PLC power supply used in the system. The port
supports SNP/SNP-X slave protocols. The IC693CPU341 has PCM/CCM
compatibility, although, it does require a CMM module in order to
support SNP/SNP-x master, CCM, or RTU slave support. It also
requires a PCM module to support RTU master.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
