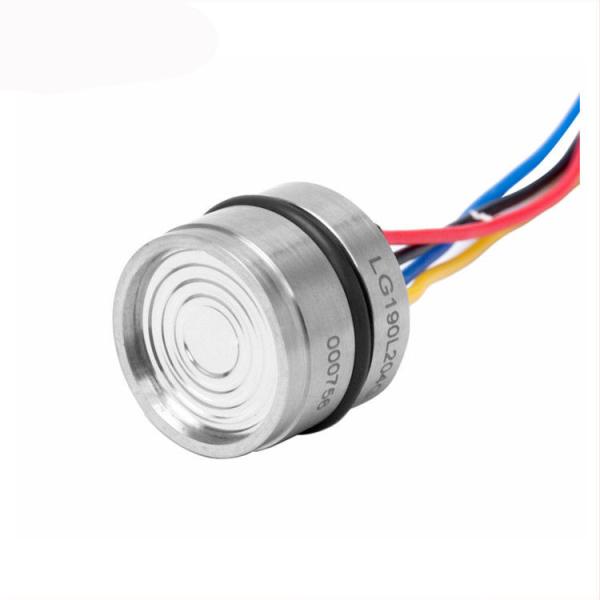

    316L 19mm Piezoresistive Silicon Pressure Sensor Transducer

    Ask Lasest Price
    Brand Name : OEM
    Model Number :
    Price : Negotiable
    Certification : CE;ISO
    Delivery Time : 5-10days
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20,000 pcs per month
    • Product Details
    • Company Profile

    316L 19mm Piezoresistive Silicon Pressure Sensor Transducer

    316L 19mm Piezoresistive Silicon Pressure Sensor Transducer

    Product Description

    High stable sensor is the piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable silicon die, housing with outer diameter Ø19mm 316L stainless steel housing. Wider temperature compensation and zero correction are calibrated by laser trimming technics. The measured pressure is transmitting onto silicon die through 316L diaphragm and inner media, to transform the pressure to electric signal.


    Main features

    • Pressure range: 0~20 kPa...35MPa
    • Gauge, absolute, sealed gauge
    • Constant current power supply
    • Isolated construction, enable to measure various media
    • Ø19mm standard pressure sensor
    • Full stainless steel 316L
    • Wider temperature compensation -10°C~+80°C
    • Long-term stability 0.1%FS/year

    Application
    • Industrial process control
    • Level measure
    • Gas, liquid pressure measure
    • Pressure meter
    • Pressure calibrator
    • Liquid pressure system and switch
    • Refrigeration equipment and air conditioner
    • Aviation and navigation inspection

    >> Specification


    Electric Specification　
    Power supply≤2.0mADC
    Electric connectionKovar pin or 100mm silicon rubber flexible wires
    Common mode voltage output50% of input (tye.)
    Input impedance3kΩ~8kΩ
    Output impedance3.5kΩ~6kΩ
    Response(10%~90%)<1ms
    Insulation resistor100MΩ,100VDC
    Overpressure1.5 times FS
    　
    Construction　
    Diaphragmstainless steel 316L
    Housingstainless steel 316L
    PinKovar
    O-ringViton
    Net weight~16g
    　
    Environment Condition
    Positiondeviate 90° from any orientation, zero change ≤0.05% FS
    Shockno change at 10gRMS,(20~2000)Hz
    Impact100g, 11ms
    Media compatibilitythe gas or liquid which is compatible with construction material and Viton
    　
    Basic Condition
    Media temperature(35±1)°C
    Environment temperature(35±1)°C
    Shock0.1g(1m/S/S)Max
    Humidity(50%±10%)RH
    Local air pressure(86~106)kPa
    Power supply(1.5±0.0015)mAD


    >> Application
