DVI 1 x 16, long distance signal transmission, DVI Signal Splitter
1.0 Technical parameters
| Weight | 1.27Kg |
| Single link input/output resolution | up to 1920x1080@60Hz |
| Dual link input/output resolution | up to 3840x2160@30Hz |
| Support video color format | 24bit/deep color 30bit,36bit |
| Max signal bandwidth | 340MHz |
| Max baud rate | 3.4Gbps Serial Link |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| DVI input cable distance | ≤10m AWM 20276 DVI standard cable |
| DVI output cable distance | ≤10m AWM 20276 DVI standard cable |
| Power adapter | Input:AC 110~240V 50/60Hz Output: DC 5V 3.5A |
| Power Consumption(max.) | 13.5Watts |
| Operating Temperature range | -5 to +45℃ |
| Storage Temperature range | -15 to +55℃ |
| Operating Humidity range | 10 to 90%RH (No Condensation) |
| Storage Humidity range | 5 to 95%RH (No Condensation) |
| DVI interface type | Dual link DVI-D |
| CaseDimension :L×W×H(mm) | 432x130x44.5 |
2.0 Features:
1. 1X DVI-D input and 16 DVI-D outputs.
2. Support for long distance signal transmission.
3. Support resolution 640X480@60Hz to 3840X2160@30Hz, compatible
with the 1920x1200 standard.
4. Support dual Link DVI-D signal transmission, resolution up to 3840X2160@30Hz.
5. Installs in minutes, No loss of quality.
6. Metal casing design and overall shielding without signal
interference.
7. LED indicates signal and power mode.
8. Supports wide range voltage DC input (DC5V~12V).
3.0 Packaging accessories:
1. DVI 1×16 Splitter--------------------------------------------------1 Pcs
2. 5V DC Power Adaptor-------------------------------------------1
Pcs
3. User
Manual-------------------------------------------------------1 Pcs

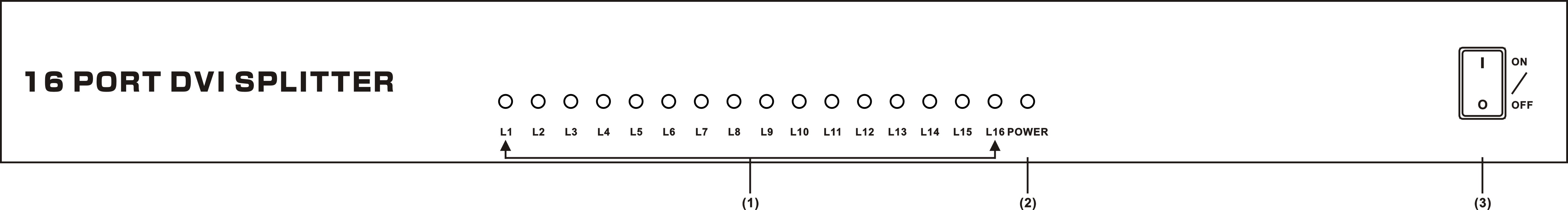

4.0 Panel Introduction
1. L1-L16-----------------------------Output 1-16 Status
2. POWER ----------------------------------Power Status
3. ON/OFF ----------------------------------Power Switch
4. DC5~12V-----------------------------Power Input Port
5. OUTPUT1-16------------------------Output Port 1-16
6. DVI INPUT ------------------------------------Input Port
5.0 Connection diagram
1. Connect one dual link DVI-D cable from a DVI signal source into
the input port of splitter.
2. Connect dual link DVI-D cables from TV/Monitor into the DVI
output ports of splitter.
3. If the resolution is higher than 1920X1080@60Hz, you must use a
dual link DVI-D cables, the signal source and the display must be able to support this
resolution.
4. Connect DC plug of AC adapter to DC jack and inserted into the
power socket.
Explanation: With different brands of the input or output device,
the length of the
connecting cables will differ too.
6.0 Installation and Precautions
To avoid electric shock , product damage and to protect your safety
, please notice the following:
1. Please slowly plug or unplug signal cables and do not often plug
, unplug , or shake them.
2. The equipment should not be placed under the sun , rain and damp
or unventilated environment.
3. Liquid items should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire ,
power , or other amplifiers that produce heat.
6. Do not demolish the equipment by yourself ; it should be
maintained by professional maintenance staff.
