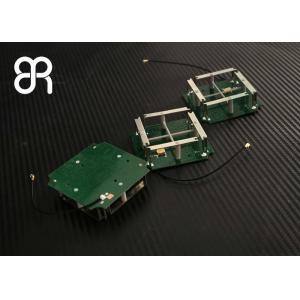

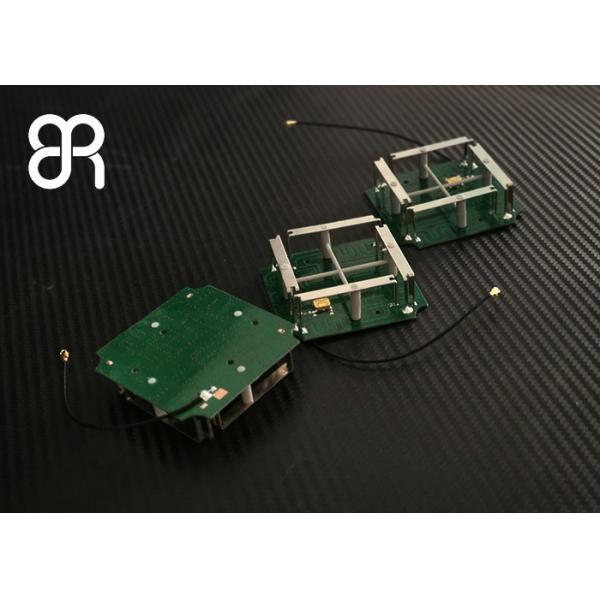

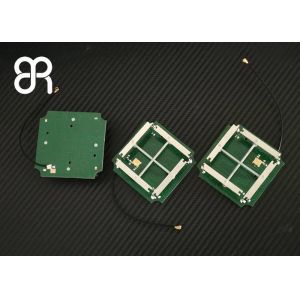

BRA-07 Axial ratio<3 dB UHF Small RFID Antenna with FR4, stainless
steel Material
The development of RFID readers is becoming more and more compact
and portable. The operating frequency of the UHF band RFID system
is around 900 MHz. The traditional form of antenna is too large for
the handheld RFID system, and the reader antenna occupies an
increasing proportion of the size of the reader. On the premise of
maintaining the antenna performance, the size reduction of the
reader antenna is much more difficult than the reader circuit, so
the miniaturization of the antenna size has become the current
trend of RFID reader antenna research.
Product Features
1,Universal antenna for high gain, miniaturization, low VSWR and
other terminal applications.
2,superior mechanical performance, small size, suitable for a
variety of harsh environments.
3,the antenna uses circular polarization design, gain 3dBic, small
size, high recognition sensitivity
4,BRA-07 Antenna is of convenient application in UHF RFID handheld
reader and other terminal application fields.
Performance Specifications
| Frequency Range | 860MHz～960MHz |
| VSWR | ≤1.3:1 |
| Gain | > 3 dBic |
| Polarization | Circular Polarization |
| Axial ratio | <3 dB |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | CMMX(IPEX optional) |
Production capacity
1) Management team of Japanese-funded enterprises to ensure
production order
2) Excellent import operation and test equipment to ensure product
accuracy
3) Efficient job management process to ensure production efficiency
4) Strict quality control mechanism to ensure product quality
5) Passed ISO9001: 2018 quality management system certification
Broadradio has excellent independent innovation ability and
professional technical team. The main RFID members are designers or
main bearers of Wal-Mart project series labels, Wuliangye fragile
security labels, UHF book labels, and national standard vehicle
electronic labels. At present, Broadradio has obtained a number of
national patents and PCT international patents.
