    Piezo Technology Electropneumatic Smart Valve Positioner

    Ask Lasest Price
    Brand Name : POWERFLOW
    Model Number : IP6000
    Certification : NEPSI, ISO9001, HART, CE
    Price : Quotation Offered by Email.
    Payment Terms : T/T
    Supply Ability : 50Nos/Week for every single Customer.
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

    Piezo Technology Electropneumatic Smart Valve Positioner

    IP6000 Series Feedback Smart Valve Positioner with Piezo Technology


    1. Product Description


    IP6000 Series Smart Valve positioner is optional in HART communication and Exia explosion proof. It's with piezo technology. The piezo valve is purchased from Hoerbiger Germany with CO certificate for offering top class product for all of our customers.


    ​2.Technical Datas


    MaterialAluminum
    Set-point Signal4 - 20mA DC
    Min. Operating Current3.6mA DC
    Vibration Resistance

    0.15mm,10Hz-60Hz,20 cycle/axis

    20m/s2,60Hz-500Hz,20 cycle/axis

    Recommended range for control valve

    ≤ 20 m/s2,no resonance peak

    Ambient Temp.-20 - 70℃
    Gas Source RequirementISO 8573-1 Class 3
    Steady State Air Consumption≤ 0.4 L/min
    Supply Pressure0.14 - 0.7MPa
    Flow55 L/min (Sup=0.14MPa)
    Stroke Control RangeLinear 10-100mm; Rotary 30-100°
    Electrical ConnectionM20*1.5
    Pneumatical ConnectionG1/4
    Explosion ProofEx ia IIC T4/T6
    Protection ClassIP66
    Weight2KG

    3. Product type selection


    Remarks: Power off State option is safe by default. There is no pressure gauge for the type of seperate install positioners.


    4. Principle Block Diagram



    5. Additional Software Functions


    • Calibrating the set-point signal
    • Setting for dead band zone
    • Sealing function for position controller
    • Limit of the mechanical stroke range
    • Selection of the transfer characteristic between set-point valve and stroke
    • Selection of signal direction
    • Selection of stroke direction
    • Factory settings

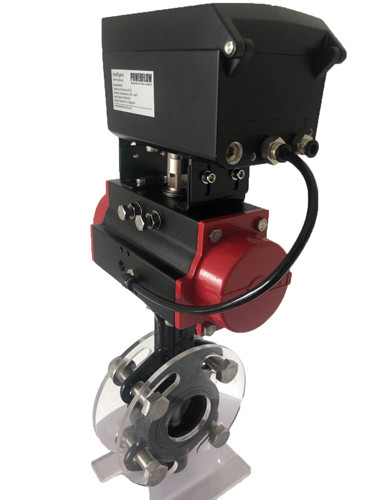

    Quality Piezo Technology Electropneumatic Smart Valve Positioner for sale
