Product Description

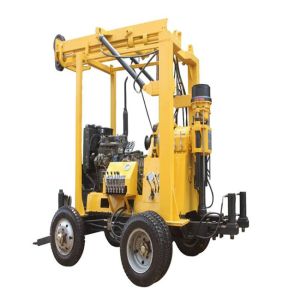

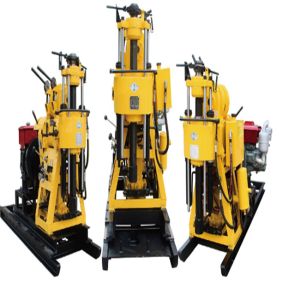

HY-120 Electric type 40-200m deep portable undergroud mine water
well drilling rigs for sales
Low price Electric type underground deep water Borehole Drilling
Machine /water well rotary drilling rig for sale
This machine mainly used for geothermal drilling, farm irrigation ,
house yard, gardens and water well drilling, drilling diameter is
70-350mm, and drilling depth is 80m to 100m. It also can be used in
small building piling, like farmhouse or factory, the drilling
diameter can reach 500mm and depth can be more than 100 meter.
The advantage
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in
short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.
7. Assure easily operation and long life service life, free
maintainance.
Technical data
| Model of drilling machine | HY-120 |
| Drilling machine overall dimension(mm) | 700*700*2900 |
| Weight of Drilling machine (kg) | 120 |
| Drill rod diameter (mm) | 42 |
| Drill rod length(mm) | 1500 |
| Rod change method | Full automatic screw thread |
| Drilling depth(m) | 80 |
| Voltage (V) | 220V |
| Motor power (KW) | DC60V, 1.5KW~2KW |
| Drilling method | Percussive and rotating type |
| Pump power (KW) | 2.2KW |
| Drilling hole diameter(mm) | Within Ø 120mm |
| Hosting height(mm) | 2000 |
| Hosting capacity (kg) | 500 |
