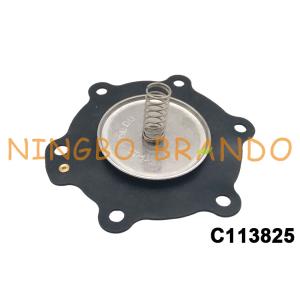

C113825 NBR/Buna Material Diaphragm Repair Kit For G353A045 Dust Collector System

C113825 NBR/Buna Material Diaphragm Repair Kit For G353A045 Dust Collector System

C113825 Diaphragm repair kits is the most important component of G353A045 diaphragm valve.Besides the valve body, the diaphragm is the only part of the valve which contacts the process medium. It plays a vitally important role in isolating the process medium from the actuator or top works and the external atmosphere, as well as being the dynamic element of the valve, controlling and stopping the process medium. The diaphragm is made of rubber, thus making it resistant to corrosion. And different material can usde in different place.

Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.

Dimension of C113825 ASCO Type Diaphragm:

Technical:

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!

* Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.

* Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.
