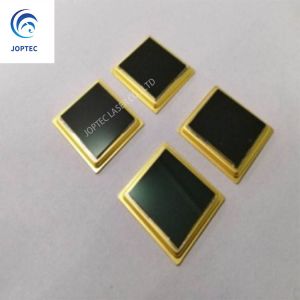

Aluminum Nitride Ceramics Airtight Hermetic Infrared Detector Package

Product name: infrared detector package

Applications: infrared detectors

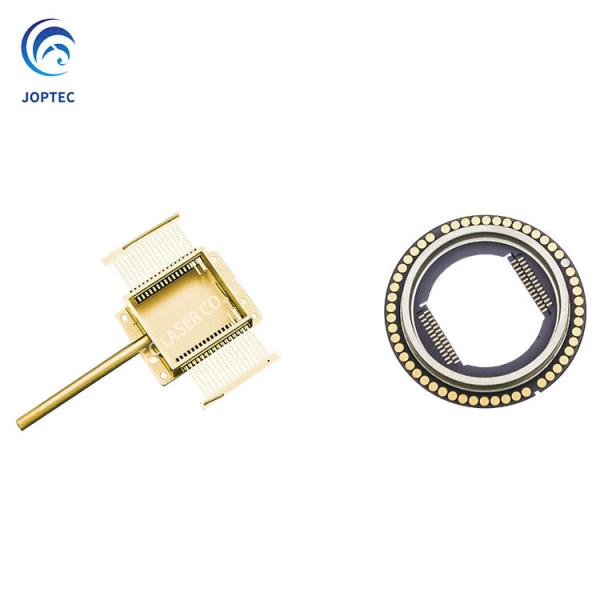

Product features: The infrared detector package can provide high-reliability and airtight packaging for refrigerated and uncooled infrared detectors. The main package forms are butterfly ceramic package, ceramic PGA package and ring ceramic package, which can integrate fusion sealing, brazing, HTCC multilayer ceramic and light window technology.

Technical characteristics:

Substrate material: Kovar (4J29), Aluminum oxide ceramics, aluminum nitride ceramics

Lead material: Kovar

Processes: Silver gold brazing, gold tin soldering, HTCC multilayer

Insulation resistance: ≥ 1x10¹⁰Ω (500V DC)

Air tightness: ≤1x10^-6Pa.cm³/s (He)

Plating: Full plating gold or lead plating gold, partial plating, etc.

Reliability: Meets MIL-883 and GJB5438 requirements

Founded in 1988 in Hefei, JOPTEC is a global leader in R&D and manufacturing of hermetic metal-glass packages for hybrid integrated circuits, high power laser, optical communication, infrared detector and other optoelectronic devices. With the continuous investment in new technologies and facilities, JOPTEC now covers an area of 21,000 square meters and has developed a complete and mature process for the design, manufacturing, testing and quality inspection for hermetic metal-glass packages. Over the past few decades, JOPTEC’s capability, quality consistency and reliability have been recognized by customers worldwide that range from major international companies of high power laser, optical communication, defense and aerospace agencies to medical and research establishments.
