95 Porcelain Special Purpose Wear-Resistant Ceramic Positioning Pin
Product Overview
Special-shaped ceramic positioning pins have extremely strong
corrosion resistance, and can also be used in strong acids, strong
alkalis, and seawater. At 1100 ℃, the strength and hardness are
almost unchanged. Can also be used in non-magnetic and magnetic
fields.
Performance characteristics:
The ceramic positioning pin is similar to the ordinary welding
positioning pin, but it is made of super-hard silicon nitride
ceramic material. The special physical and chemical properties of
ceramic materials determine certain special properties of silicon
nitride positioning pins. For example, high wear resistance, high
hardness, non-conductive, non-magnetic, non-stick welding slag and
other excellent properties.
Product parameter table
Material
Project | Alumina AL203 | Silicon carbide sic | Silicon nitride sin | Silicon nitride sin |
| Color | Ivory | black | black | Milky white, gray black |
| Content(%) | 99.5 | …… | …… | …… |
| Main features | - Excellent high frequency electrical insulation
Good wear resistance preservative Strong High hardness
| - Good high temperature strength
- High thermal conductivity
- Strong alkali resistance
- Wear-resistant
- Lightweight
| - Good high temperature strength
- Strong impact resistance
- Strong corrosion resistance
- Lightweight
| - High strength and high impact resistance
- Good self-lubricating
- Strong alkali resistance
- Smooth surface
- Good toughness
|
| The main purpose | - Wear parts
- High temperature parts
- Corrosion resistant parts
| - Machinery Seal
- Sliding parts
- High temperature parts
| - Molten metal parts
- Metal plasticity
- Processed parts
| - Industrial knives
- Pump parts
- Wear parts
|
| Density | Kg/m³ | 3.9*10 | 3.16*10 | 3.3*10 | 6.0*10 |
Mechanical behavior
| Vickers hardness | Gpa | 16.0 | 23.0 | 14.0 | 13.2 | 12.7 |
| Flexural strength | Mpa | 360 | 450 | 1020 | 1000 | 1470 |
| Compressive strength | Mpa | 2350 | …… | …… | …… | …… |
| Fracture toughness | Mpa | 4 | 2-3 | 7 | 4-5 | 4-5 |
Thermal performance
| Linear expansion coefficient | 40-400℃ | ×10-5/℃ | 7.2 | 3.7 | 2.8 | 10.5 | 10.8 |
| 40-800℃ | 8.0 | 4.4 | 3.3 | 11.0 | 11.3 |
| Thermal conductivity | W/(m·k) | 32 | 200 | 27 | 3 | 3 |
| Specific heat | J/(kg·k) | 0.78*10 | 0.67*10 | 0.65*10 | 0.46*10 | 0.46*10 |
| Thermal shock resistance (in water) | ℃ | 250 | …… | ＞800 | 300 | 350 |
| Electrical performance | Dielectric strength | V/m | 15*105 | …… | 13*105 | 11*105 | …… |
| Volume resistance(20℃) | Ω·cm | ＞1014 | 108 | 1014 | 1013 | …… |
| Dielectric constant | …… | 9.6 | …… | 9.9 | 33 | …… |
| Loss factor | ×10-4 | 10 | …… | …… | 520 | …… |
Product advantages
- High hardness: the hardness of zirconia is second only to diamond
- High wear resistance: High hardness and good red hardness determine
that the zirconia positioning pin has excellent wear resistance
- High cost performance: the service life of zirconia positioning
pins is several times that of ordinary positioning pins
Applications
Ceramic positioning pins can be applied to accessories for special
purpose parts of high temperature resistance, corrosion resistance,
wear resistance, and high voltage resistance used in industries
such as electronics, machinery, chemical industry, metallurgy,
textiles, and power.
After the positioning pin is worn, it will produce a blocking
effect when loading and unloading, causing the positioning hole of
the part to be hooked. In order to ensure the accuracy of the
relative position between the two parts after the certificate is
installed, cylindrical pins or tapered pins are often used for
positioning, so the requirements for the pins and pin holes are
high. In order to facilitate the processing of pin holes and pins,
as far as possible, the pin holes are made as through holes as much
as possible.

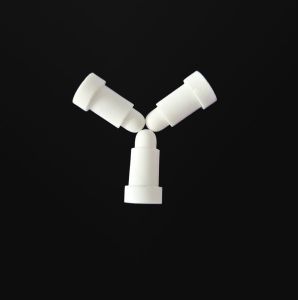

Product Picture
All kinds of positioning pins, porcelain tubes, porcelain rods and
electrical ceramics can be customized and processed with samples.
Product packaging
Packed in carton
FAQ
1. Are you a factory or a trading company?
Answer: We are a factory, welcome to visit our factory.
2. What is the price of your product?
Answer: Please do your best to inquire about each detailed
requirement including quantity, size, color, packaging, etc., then
we will give you an accurate quotation at the first time.
3. How to guarantee the quality of the products we ordered from
you?
Answer: The company has strong technical force, advanced production
equipment and perfect testing methods. The products have beautiful
appearance and quality assurance. The company has passed ISO9001:
2000 international quality system certification, and the product
sales network covers all parts of the country; more than 80% The
products are exported to Asia, Europe, and the United States, and
enjoy a good reputation in the domestic and foreign markets. The
company has strong technical support, excellent management
personnel, and perfect customer service. Regardless of product
quality or distribution services, they have won the praise of
customers.
4. Is it possible to make the product our own design?
Answer: Yes! We accept customized orders. And we also have an
experienced R&D team, and will do everything in accordance with
your expectations!
