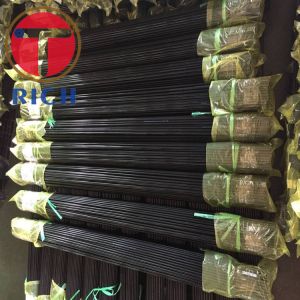

    Brake System PVF Coating Single Wall Bundy Tube

    Ask Lasest Price
    Brand Name : TORICH
    Model Number : SAE J526
    Certification : ISO9001
    Price :
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 Tons per Month
    Delivery Time : 45-50 work days
    • Product Details
    • Company Profile

    Brake System PVF Coating Single Wall Bundy Tube

    SAE J526 PVF Coating Single Wall Bundy Tube For Brake System

    1. Standard

    SAE J526 Welded low-carbon tubing

    EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems

    ASTM A254 Copper-brazed steel tubing


    2. Steel Grade

    BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06


    3. Heat Treatment

    BK or NBK


    4. Specification

    O D/ mm44.24.7666.357.889.52
    W T0.5-1.0mm (0.5-0.7mm common WT)
    Tolerance±0.05mm
    Length180Kg/coil; 700-1000m/coil; per customer’s request

    5. Surface Treatment

    CoatingThicknessSalt spray test duration
    Copper/White Zinc/Colour-Zinc8μm72h
    PVF8μm+20μm1000-2000h
    Military Green Zinc8μm180h
    GALFAN8μm+20μm1000-2000h
    Nylon8μm+40μm180h

    6. Application

    1) Fluid carrying system for automobiles

    2) Fluid carrying system for refrigerators

    3) Wire condenser for chillers, showcase

    4) Vending machine, ice machine etc.


    Detailed Images


    A&Q

    Q: Are you trading company or manufacturer ?

    A: A professional steel pipes materials inventor, manufacturer and solution provider

    Q: How long is your delivery time?

    A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample but need pay the cost of freight.

    Q: What is your terms of payment ?

    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
    If you have another question, pls feel free to contact us
