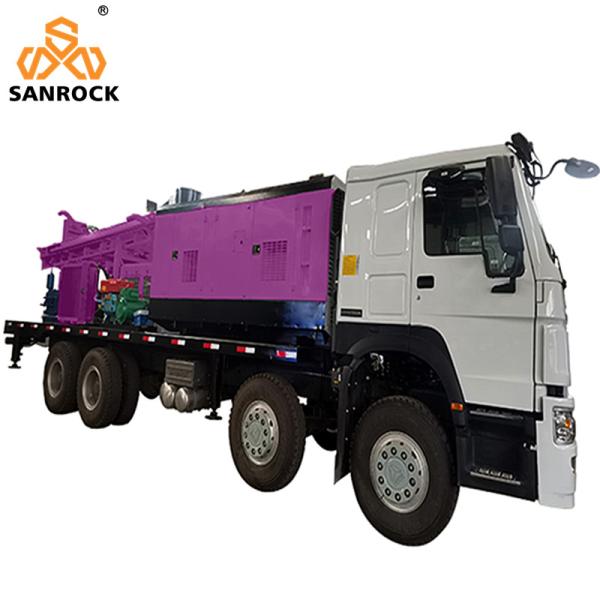

Water Well Drilling Rig With Compressor 600m Bore hole Truck
Mounted Water Well Drill Rig
RTM600 truck mounted drilling rig can drilling in all kinds
formations by mud drilling in soft formation and air DTH hammer in
rock drilling,DTH Hammer is applied in rock drilling, slag is
discharged by air pressure and the offstage efficiency is ten times
than traditional rotary drilling.
SRTM600 deep water well drilling rigs, in cutting drilling or
rotary drilling can be operated in unconsolidated layer, and the
slag can be discharged under by mud, the impact drilling operation
can also be adopted and slag can be discharged by pressure air, the
hydraulic water well drilling rig suitable for drilling complicated
geological conditions.
SRTM600 Multi-functional truck mounted water well drilling rig is a
efficient,multi-function full hydraulic water well drilling rig. It
is high efficiency because of having a larger torque of the
turntable and is mainly used for water well in industry and
agriculture, national defense building foundation, geological
exploration, geothermic well and other foundation working, it is
popular at home and abroad.
Feature:
1.Using the principle of pneumatic impact, the drilling footage is
fast and efficient. The automobile chassis is adopted,the layout is
reasonable and compact, and the operation is simple.
2.Equipped with hydraulic outriggers for leveling the rig and
keeping the machine stable. The main engine is equipped with a
high-power diesel engine with strong power to meet work needs.
3.Equipped with hydraulic lifting and lowering composite drill
boom, which saves space and provides powerful lifting force for
deep hole operations.
4.The drilling rig is equipped with a hydraulic feed system, dual
hydraulic motor power heads, chain transmission and hydraulic
cylinder propulsion, with large torque and high drilling
efficiency.
5.Equipped with quick rod unloading device, which can quickly
disassemble the drill rod, saving time and effort. 6.Centralized
operating handles, reasonable layout, safe and feasible. Excellent
workmanship, durable, and low maintenance costs.
6.Centralized control console is suitable for each manipulation and
control.
7.Rapid pulling and enhance the work efficiency.
Products Description
Product name:Truck mounted water well drilling rig | Drilling Depth:Max.600m | Drilling Diameter:140mm-400mm | Power:153KW | The engine brand :Cummins engine | Rotate Torque:8500-11000N.m | Drill tower load:50T | Pull down force:15T | Lifting force:30T | Liftng force cf hoist winch:3T | Mud pump:1100L/M | Effective height cf power head:6.5m | Cylinder strock cf power head:3.6m | Drill Pipe Diameter:φ102mm φ108mm φ114mm | Drill Pipe Length:4000/4500mm | Dimension(L*W*H):12500*2500*4300 mm | Weight:25000KG |
| |
Our truck-mounted water well drilling rig is a customized product
that customers can customize according to their actual needs.
Customers can choose from: chassis brand, boom length, mud pump
selection, chassis installation air compressor and so on.
The vehicle-mounted water well drilling rig is divided into
different models according to the drilling depth.
