Wholesale P10 P6 Outdoor Advertising Full Color LED Display /
Screen / Sign / Panel
Info about us:
SCXK has been specialized in LED field since 2005. We are a leading
manufacturer and provider of technical solution of full color
indoor an outdoor ledisplay,rental LED display, led modules where
in Shenzhen ctiy,Guangdong province,China.
We have a professional team and a series of equipments.Every year
our products exported overseas and are popular among many foreign
countries,also in our own country you can find the many application
places.Such as station,airport,church,shopping mall,commercial
centure,concert and so on.
From statium to TV station,conference&events,SCXK Electronics
provide a wide range of eye-catching and energy saving LED screen
solutions to industrial,commercial and governmental markets
worldwide.
Part A: Product Features
1) Reliable quality, advanced and mature technology, compliant with
industrial standards and technology developing trend.
2) Good heat emission, water proof and stable performance
3) Audio and video interface of the system can offer vivid,
complete and high quality LED display to TV broadcasting
signal
4) High resolution and definition of screen image, clear and
non-flash screen image.
5) Supports video and radio frequency input, special structure can
be freely assembled.
Part B: Warranty
1. We provide two-year warranty for all display screens, modules,
spare parts.
2. We provide free technical training, including operation and
maintenance training of LED screens in the factory.
3. After the warranty period, we can also provide you with
replacement parts at the lowest price.
4. After-sales, if you have any problems with our products, you can
inform us by email, we will reply you immediately after receiving
it
and provide you with a good way to solve the problem.
5. We can also solve the problem for you by remote control until it
returns to normal!
Part C: Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after
receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up
for 72 hours, and check all the parts of the display to confirm it
is OK for delivery.
| SMD LED Display P6 |
| Resolution/mm | 6 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 27778/square meter |
| Module resolution | 32x32mm |
| Module size/mm | 192x192mm |
| View distance | 6-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 8000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | alternating driving current |
| Scanning mode | 1/8 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Asynchronous,3G,4G,Wifi |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Aging hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Waterproof | IP65 |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

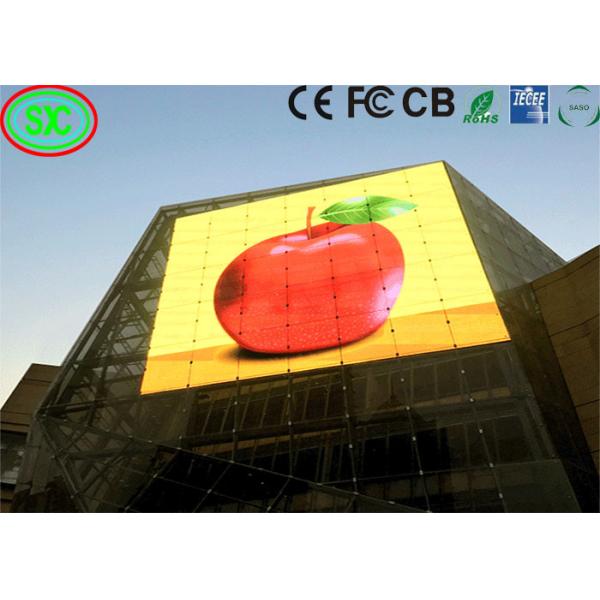

Our Cases:
___________________________________FAQ___________________________________
Q1:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q2: How to proceed an order for led display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q3: Is it OK to print my logo on led display product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
