    15 Inch 30 pins Connector TFT LCD G150XTN06.1 With LED Driver Without Touch Panel

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G150XTN06.1
    Certification : ISO9001
    Price : 60USD
    Payment Terms : T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
    Delivery Time : 1 DAY
    • Product Details
    • Company Profile

    15 Inch 30 pins Connector TFT LCD G150XTN06.1 With LED Driver Without Touch Panel

    1.Main Information:

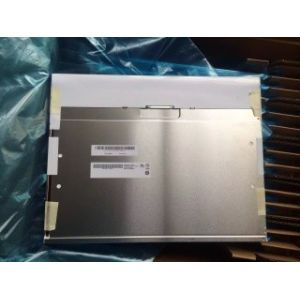

    AU Optronics Corp.G150XTN06.1 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.
    It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²).
    It's general features are ollowing: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours, With LED Driver, Upside I/F, 6/8 bit, Matte .
    Based on its features,this model be applied to Industrial etc.
    2.AUO G150XTN06.1 Mechanical Details:
    Pixel Features :Pixel Format1024(RGB)×768 [XGA]Dot Pitch0.099×0.297 mm (H×V)
    ConfigurationRGB Vertical StripePixel Pitch0.297×0.297 mm (H×V) [85PPI]
    Mechanical Size :Display Area304.128×228.096 mm (H×V)Bezel Area307.4×231.3 mm (H×V)
    Outline Dim.326.5×253.5 mm (H×V)Outline Depth12.0±0.5 mm
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio4:3 (H:V)Shape Style-
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Other Features :Weight1.00Kgs (Max.)SurfaceAntiglare, Hard coating (3H)

    3.AUO G150XTN06.1 Optical Details:

    Basic Information :Brightness450 cd/m² (Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
    Viewing Angle80/80/70/80 (Typ.)(CR≥10)Optical ModeTN, Normally White, Transmissive
    Viewing Direction-Response Time5.7/2.3 (Typ.)(Tr/Td) (ms)
    Color Performance :ChromaticityWx:0.311; Wy:0.322Color Numbers262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature6658KWhite Uniformity1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio64%sRGB85% coverage
    Adobe RGB66% coverageDCI-P366% coverage
    Rec.202047% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    4.AUO G150XTN06.1 Backlight Details:

    Back-light Features:Lamp Shape-Lamp TypeWLEDLife Time70K(Typ.) (Hours)
    ReplacementReplaceableAmount-PositionEdge light type (Bottom side)
    Interface Features :TypeConnectorPosition-Lamp DriverWith LED Driver
    Interface Detail :BrandModelPin PitchPinsAmountConfiguration
    E&T3808K-F05N-12R1.25 mm5 pins1 pcs
    Driver Electrical :Voltage Input12.0±1.2VCurrent Input0.75A (Typ.)
    Consumption9.0W (Typ.)

    5.FAQ:

    Q1:What's the quality of your LCD Panel?
    A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


    Q2:What is your return and refund policy?
    A:We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


    Q3:How long is the lead time?
    A:The lead time is about 1-3 working days after receipt of payment.


    Q4:How can I get the quotation?
    A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
