    20L Water 120BPH Gallon Bottle Blowing Machine

    Ask Lasest Price
    Brand Name : FillPack
    Model Number : FP-120
    Certification : CE. ISO9001
    Price : 9600USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets/month
    Delivery Time : 15-20days after deposit receipt
    • Product Details
    • Company Profile

    20L Water 120BPH Gallon Bottle Blowing Machine

    Semi Automatic Plastic 5 gallon bucket blowing machine For drinking water


    5 gallon bucket blowing machine Specifications:
    1. PET bottle blowing machine with 1 Cavity
    2. Suitable for 15~20L bottles
    3. Blow PET or PP bottles
    4. Capacity: 120BPH


    5 gallon bucket blowing machine Product Description:
    suitable for producing PET plastic containers and bottles from 15L~20L.
    1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the preform , the preform rotated and heated equally.
    2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow.
    3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
    4. The machine can be operated in the step-by-step mode and the semi-auto mode.
    5. The machine is small with low investment,easy and safe to operate.
    5 gallon bucket blowing machine main Parameter:
    Type
    Item
    Unit
    Parameter
    Suitable Product Material
    PET
    Number of cavity
    CAVITY
    1
    Bottle Volume
    L
    20L
    Theoretical Output
    BPH
    120
    Max Container Height
    MM
    400
    Max Container Diameter
    MM
    130
    Max Mouth Diameter
    MM
    110
    Mould
    Max Mould Plate Dimention
    PCS
    L420xW640
    Max Mould Thickness
    MM
    400
    Clamping Force
    KN
    100
    Mould Opening Stroke
    MM
    380V/50Hz
    Blower and Heater
    Blower size(LxWxH)
    CM
    220x72x200
    Blower weight
    KG
    1500
    Blowing pressure
    KG
    20-30
    Acting pressure
    KG
    8-10
    Heater LxWxH
    CM
    270x65x165
    Heater Weight
    KG
    560
    Rate Capacity
    PCS/MIN
    18-25
    Preform Mouth
    MM
    55
    Voltage
    380V/3Phases/50-60Hz
    Motor Power
    KW
    25
    Max Heating Power
    KW
    14

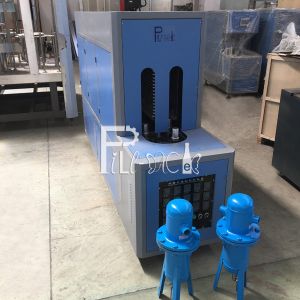

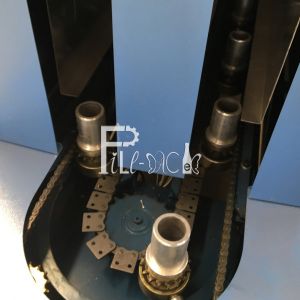

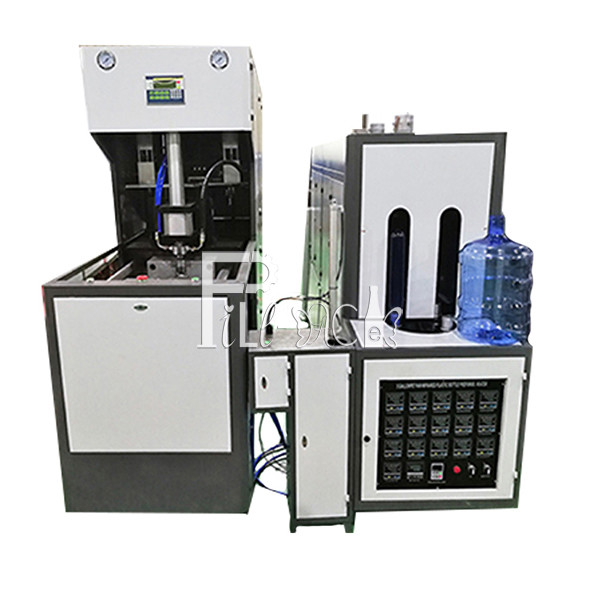

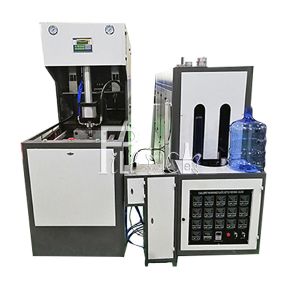

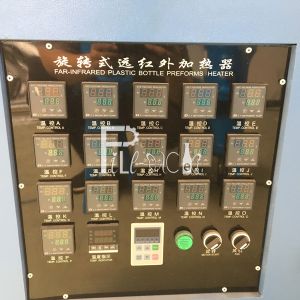

    Machine Detail of 5 gallon bucket blowing machine
