| Brand Name : | Dingyu/ DY SCAN |
| Model Number : | DI9150-2D |
| Certification : | CE, ROHS, FCC, IEC, FDA |
| Price : | Negotiate |
| Payment Terms : | T/T, Paypal, Alibaba |
| Delivery Time : | 3-7 days |
| Supply Ability : | 10000pcs/month |

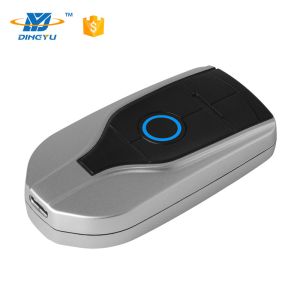

Portable Bluetooth 2D Mini QR Code Reader Compatible for Mobile Scan
Parameter
| Scan Type | CMOS |
| Light Source | Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED,wavelength coverage 525nm |
| CPU | 32-bit |
| Start time | 750ms |
| Resolution | 640*480 |
| Reading precision | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Decoding speed | 25CM/S |
| Visual angle | Horizontal 40°× Vertical 30° |
| Depth of field | 3mil:55~100mm,13mil:55~350mm |
| Scan Mode | Trigger mode,Auto sense mode |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Print Contrast Signal | ≥25% |
| Ambient Light | 70000lux |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | Bluetooth 30 m, Wireless 2.4G 150m(Open distance) |
| Storage | 16Mb(over 100,000 barcodes) |
| Battery capacity | 450mAh |
| Battery charging time | About 1.5 h |
| Continuous working time | ≥2.5h |
| Symbologies | 1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| Weight | ≈70g(without cable) |
| Dimension | 73.8mm L * 37mm W *16.3 mm H |
| Interface Type | Type C |
| Power Supply | DC5V, standby current:47mA,Decoded average current:200mA . |




|   |
