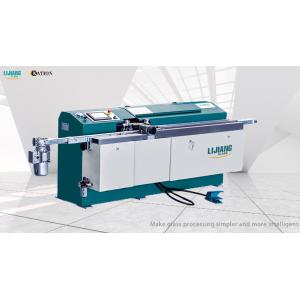

Insulating Glass Butyl Coating Machine For Spacer Frame
LJTB 01 Butyl extruder machine is used for spreading aluminum
spacer frames evenly with hot melt butyl.
Advantage of automatic butyl rubber machine LJTB01
1.PLC control system, touch screen interface
2.Automatically adjust the amount of glue according to the speed
change
3.Automatic identifying the width of aluminum bar, the glue nuzzle
can be automatic adjust
4.The critical part of the hydraulic system using German imports of
components to ensure that the plastic evenly full 5.Fast preheat,
improve work efficiency
6.with preheating function
7.With exhaust inflatable function, improve the quality of sealing
and save time for plastic
8.Quickly coating speed,can up to 47m/min
9.Saving the amount of glue
Feature of Automatic butyl coating machine
1.The Butyl Extruder adopt PLC control system ,touch screen
interface
2.Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
3.Glue cylinder of Butyl coating equipment adopt the upright
structure, easy to change butyl.
4.Butyl extruder machine adopt Siemens brand,stable performance.
5.Butyl extruder machine is suitable for square, rectangular,
shaped, arc and kinds of aluminum frames.
6.The Butyl coating machine can be Quickly speed of warming,Up to
47m / min,improve work effect.
7.Butyl Extruder machine can automatically adjust the amount of
glue according to different speeds.
8.Alarm system
Automatically alarm system, reminding adding butyl
9.Guiding Wheel
Using guiding wheel to help arc frames coating.
10.Automatic filter function
Automatically filter debris, keep spreading evently.
Technical Data of butyl extruder machine
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 20mm |
| Aluminum spacer width | 6A-27A |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Air pressure | >0.6MPa |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Dimension | 2800*700*900mm |
| Total power | 380V, 5KW, 50HZ |
Detail of Automatic butyl extruder machine
Related products
Desiccant Filling Machine LJGZ 2020A
Main feature
• Germany Siemens PLC control system
• Touching screen interface, simple and visible
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve
efficiency
• Protection device for machine head
• Adopt vacuum pump loading device ,increase the loading speed
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data
| Max frame size | 2000mm*2000nn (2500mm*2500mm) |
| Min frame size | 300mm*250mm |
| Aluminum specifications | 6A - 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.5KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1650mm*1100mm*3600mm |
