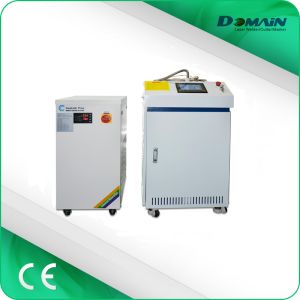

2mm stainless steel sheet handheld continuous 1000w optical fiber
laser welder 1000w handheld laser welding machine
Fiber handheld laser welder
| Model | CY-W1000FS | CY-W1500FS |
| Laser type | Continuous impulse |
| Laser wavelength | 1070nm |
| Max. laser power | 1000W | 1500W |
| Range of adjustable power | 1-100% |
| Repeat frequency | 5-10KHz(adjustable) |
| Pulse width | Continuous light |
| Welding depth | ≤1.2mm |
| Repeat precision | ±0.01mm |
| Power stability | ±2% |
| Service medium | Rare earth doped fiber |
| Length of fiber-optical | 10m(standard) |
| Beam quality | Single mode/multi mode |
| Interface of fiber-optical | QBH |
| Module life | >100000hrs |
| Cooling style | Water cooling |
| Power consumption | 6KW |
| Power supply | 220V±10%/50HZ/30A 380V±10%/50HZ/30A |
Applications:
Micro fiber handheld laser welding machine is mainly use in
jewelry, eyeglasses frame, dental, Night-Guards relines and
Repairs, watches and golf club industry. It can process all metals
used for making jewelries such as gold, silver, platinum, titanium,
steel, palladium and their alloys. It is mainly used for
manufacturing and repairing jewelry, glasses, dental, watches and
golf stick, as well as precisely welding a variety of micro and
heat-sensitive parts, just like nickel straps of batteries,
hairsprings, down-leads of IC.
Fiber continuous laser welder Advantages:
1. High precision Nd:YAG welding system
2. Absolute guarantee of stability laser beam alignment
3. Easy of maintenance: automatic water-feeding, no need open the
cabinet
4. Colour touch-screen display
5. 50 storage places for parameters
6. Supplier of gas protection
7. Regulator of the cooling air
8. Deionizing filter supplied as standard
9. A soft and attractive design
Our service
---Pre-Sales Service
Free Pre-Sales Consulting / Free Sample Marking
Speedy Laser offer 12 hours quick pre-sales response and free
consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and
users.
---After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
Fiber handheld laser continuous functions
Fiber laser handheld welding machine Advantages:
1, The electro-optic conversion efficiency is high. Low power
consumption.
2, Thin plate welding is efficient. Thick plate deep melting
without splash.
3, Water cooling is more stable.Output engergy more stable
4, maintenance-free operation.
5, The output fiber length can be customized and it has wide
modulation frequency range.
6, Less consumables,longer lifespan
7, Point and shoot machine, Fine welding with nice finishing
8, Continuous mode&pulsed mode both available
9, Capable of working with robot or CNC motion system
10, Filler-free welding,eco welding
11, Easily upgrade to higher power laser source
12, Less material deformation
13, 24/7 reliable work
14, Flexible work distance up to 10 meters
15, Suitable for inside welding / corner welding
16, Less skilled workers required
