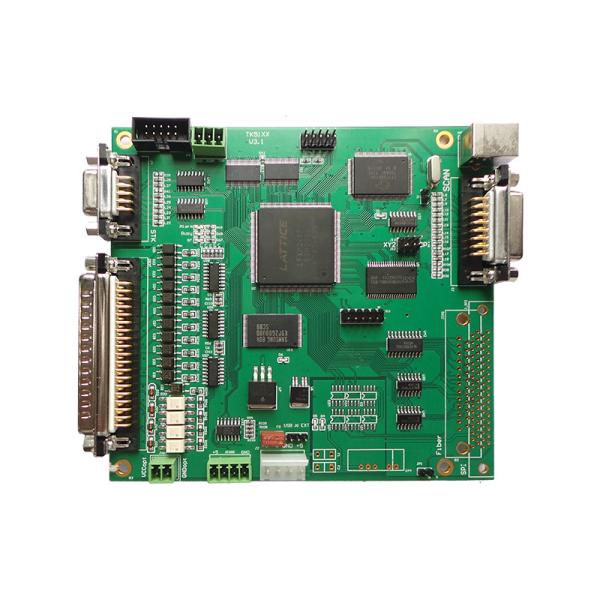

    Printed PCB Circuit Board Factory Shenzhen One-stop PCB Board And PCB Assembly Service

    Ask Lasest Price
    Brand Name : FASTPCBA
    Model Number : PCB Assembly
    Certification : IATF16949, ISO13485, ISO9001
    Price : 1-20
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150000 Pieces per Month
    Delivery Time : 5
    • Product Details
    • Company Profile

    Printed PCB Circuit Board Factory Shenzhen One-stop PCB Board And PCB Assembly Service

    Printed PCB Circuit Board Factory Shenzhen One-stop PCB Board And PCB Assembly Service


    Capable
    FASTPCBA offers one-stop service from PCB designing, manufacturing, assembling, components soucing,programming to testing.


    Confidential and Nondisclosure Agreement
    We protect the Intellectual Property for our customers in the whole process. Our staff of trained professionals are all working under a strict confidentiality contract and keep[ the business secrets.


    Flexibility
    Customers-oriented. We forever center on customers’ demands, constantly update and introduce into technology, fully understand customers’ requirements and offer our professional suggestion.


    PCBA Capability:


    Item

    PCB Assembly Service

    1.Base MaterialFR-4 / High TG FR-4 / Lead free Materials (ROHS Compliant) / Halogen Free material /CEM-3/CEM-1/ /PTFE/ROGERS/ARLON/TACONIC
    2.Layers1-48
    3.Finised inner/outer copper thickness1-6OZ
    4.Finished board thickness0.2-7.0mm
    Tolerance

    Board thickness≤1.0mm: +/-0.1mm

    1<Board thickness≤2.0mm: +/-10%

    Board thickness>2.0mm: +/-8%

    5.Max panel size

    ≤2sidesPCB: 600*1500mm

    Multilayer PCB: 500*1200mm

    6.Min conductor line width/spacing

    Inner layers: ≥3/3mil

    Outer layers: ≥3.5/3.5mil

    7.Min hole size

    Mechanical hole: 0.15mm

    Laser hole: 0.1mm

    Drilling precision: first drilling

    First drilling: 1mil

    Second drilling: 4mil

    8.Warpage

    Board thickness≤0.79mm: β≤1.0%

    0.80≤Board thickness≤2.4mm: β≤0.7%

    Board thickness≥2.5mm: β≤0.5%

    9.Controlled Impedance+/-5%
    10. Aspect Ratio15:1
    11.Min welding ring4mil
    12.Min solder mask bridge≥0.08mm
    13.Plugging vias capability0.2-0.8mm
    14. Hole tolerance

    PTH: +/-3mil

    NPTH: +/-2mil

    15.Outline profileRout/ V-cut/ Bridge/ Stamp hole
    16.Surface treatment

    OSP: 0.5-0.5um

    HASL: 2-40um

    Lead free HASL: 2-40um

    ENIG: Au 1-10U’’

    ENEPIG: PB 2-5U’’/ Au 1-8U’’

    Immersion Tin:0.8-1.2um

    Immersion silver: 0.1-1.2um

    Peelable blue mask

    Carbon ink

    Gold plating: Au 1-150U’’

    17. E-testing pass percent97% pass for the first time,+/-2%(tolerance)
    FQC-Physical Lab: Reliability tests
    18.CertificateIATF16949, ISO13485, ISO9001


    Quality Printed PCB Circuit Board Factory Shenzhen One-stop PCB Board And PCB Assembly Service for sale
