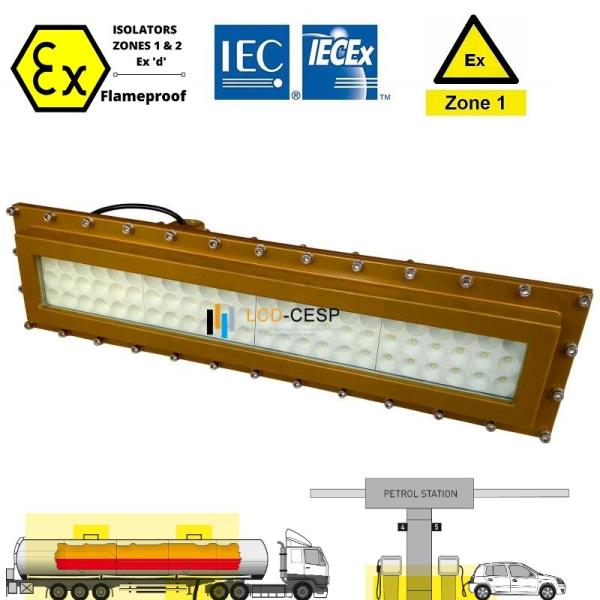

Ceiling Mount 50W 6500K Explosion Proof Fluorescent Lighting

Ceiling Mount 50W 6500K Explosion Proof Fluorescent Lighting

Explosion proof fluorescent lighting 50W, ceiling mount, 220VAC, 6500K, 6500lm

Technical parameters

• Rated voltage: AC 220V 50Hz
• Housing protection: IP66
• Anti-corrosion grade: WF2
• Color temperature: 5,500-6,000K
• Inlet thread: G 3/4
• Lead-in cable: Φ8-Φ12mm
• External dimension: 680*300*200mm
• Total weight: 11kg
• Explosion-proof sign; Ex d

Applicable place

• Widely applied in general lighting and operation lighting in hazardous environments of oil exploitation, oil refining, metal smelting, chemicals, military, coal mines, thermal power stations, wineries, etc.
• Applicable for Zone 1, Zone 2, Class IIA, Class IIB and Class IIC explosive gas environments and flammable dust environments as well as Zone 21 and Zone 22 flammable and explosive sites.

Performance features
The housing is made by aluminum alloy die casting with high voltage electrostatic plastic spraying on the surface, and has good anti-corrosive performance; Manufactured on basis of Grade IIC top standards of thread structure explosion protection, more reliable explosion-proof performance; Configured with an internationally renewed brand of LED light source, and the ceramic substrate SMT surface mounting process, providing good heat-conducting property and color rendering, featured with circuit ESD electrostatic discharge design and a lifespan up to 50,000h;LED light beads are designed in the manner of "parallel connection first and serial connection second" as well as single point single control, thus failure of a single bead doesn't influence normal operation of the other beads; Specialized constant-current power supply, wide voltage AC 85V-260V input design, featured with open circuit protection, short-circuit protection, surge protection, lightning protection, overvoltage protection, etc.; Anti-dazzle nano reflector/mirror reflector, providing good light transmittance and evenly distributed
light, protecting human eyes.Steel tube wiring G3/4'', multiple mounting methods optional for users, the light is provided with a mounting bracket enabling free adjustment of the mounting angle based on requirements.

Packing Information

• Long life time: Bridgelux LED chip and Patented design for heat dissipation.
• Application: IP66 and can be used in oil fields,oil refineries,offshore oil platform,power plant,gas station,oil tanks, wharf, tunnel, pumping station,substation,the military base.
• Energy saving, beautiful design and different installation methods available.
• Sealed aluminum alloy body with anti-static and anti-corrosion power painting. The housing is of good quality ensuring water proof, flame proof, explosion proof and dust proof.
• Easy to install and several installation methods availbale.
• Advanced driver to ensure stabel performace and high safty.
• The led explosionmproof high bay lighting is of good lighting quality, clear lightight effect without a double image and energy saving.

Install Methods:

• Ceilling Mount
• Drop mount
• Wall mount
• Pole mount

Ex Certifications:

Production line:

Electrical ratings:

LCD-CESP is the leading innovator in Lighting design.

We strive to offer the best service to our customers

Our lighting products are market leaders and have many unique features.

We offer a minimum of 5 years warranty.

Most of all Customer satisfaction is our priority.

Our R+D team have many years in the lighting Industry and we offer the following skills to our customers-

Mechanical design

Electronic design

Optic testing

We are sourcing components to the highest specification.

Our manufacturing and assembly processes are to ISO 9001 and ISO 1400 requirements.

We offer customisation and design services.
