C11000 Insulation Transformer PCB Copper Foil

Ask Lasest Price
Brand Name :	OEM
Certification :	ISO / SGS / RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	550T Per Month
Delivery Time :	10 - 15 Days

Add to Cart

Product Details
Company Profile

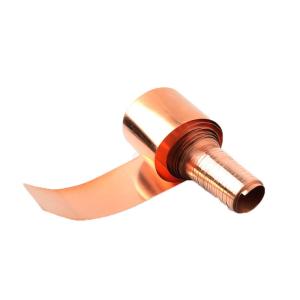

C11000 Insulation Transformer PCB Copper Foil

C11000 Insulation Transformer PCB Copper Foil

Features of Copper Foil

1) Thickness: from 0.006mm to 0.1.mm

2) Maximum Width:650mm

3) Min trial order: 100kg for normal thickness

Applications for Copper Foil

1) Transformer
2) Water Heater exchanger unit
3) Automotive manufacturers

Production capacity for Copper Foil

550 tons output per month
100kg trial order is available

Name	GB	ALLOY NO.					SIZE (mm)
Name	GB	(ISO)	(ASMT)	(JIS)	(BIS)	(DIN)	SIZE (mm)
Copper Foil	T2	Cu-ETP	C11000	C1100	C101	R-Cu57	Thickness: 0.006-0.1 /Max Width: 650

Mechanical Properties

Temper	JIS Temper	Tensile Strength Rm/N/mm 2	Elongation A50/%	Hardness HV
M	O	310~410	≥ 30	40~60
Y2	1/2H	320~450	≥ 20	55~85
Y	H	440~480	-	80~150
T	EH	450~540	-	-

Note: We can provide products with other properties according to customers` requirements.

Sizes and Tolerances (mm)

Thickness	Thickness Tolerances	Width	Width Tolerances
0.006~0.04	± 0.001	1.0~650	± 0.1
> 0.04~0.10	± 0.002	1.0~650	± 0.1

Specifications Available (mm)

Thickness	Width	Temper
0.006~0.04	1.0～650	O,1/2H,H,EH
> 0.04~0.10	1.0～650	O,1/2H,H,EH

Why Choose us Civen as your supplier?

1. Very competitive price
2. Small order acceptable
3. Good quality
4. On time delivery and perfect service
5. Customers' design are welcome!
