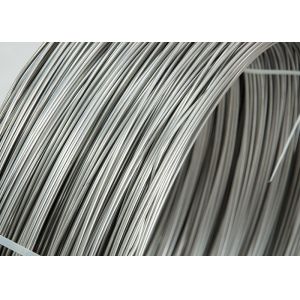

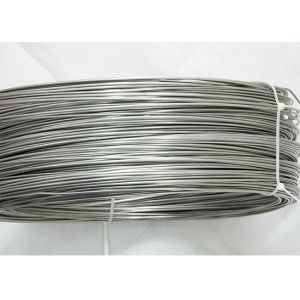

    Magnetic Ohmpm145 Fecral Electric Resistance Wire

    Ask Lasest Price
    Brand Name : Kanthal
    Model Number : APM
    Certification : ISO9001
    Price : 26.8-32.8 USD/KG
    Payment Terms : T/T, Western Union
    Supply Ability : 30000KG/MONTH
    Delivery Time : 7-30 working days
    • Product Details
    • Company Profile

    Magnetic Ohmpm145 Fecral Electric Resistance Wire

    Ohmpm145 Fecral Resistance Wire /Instead of Apm Alloy with Comparable Performance and Favorable Price for Heating


    Description

    TANKII APM is an advanced powder metallurgical, dispersion strengthened, ferrite FeCrAl alloy which is used at tube temperatures up to 1250°C (2280°F). TANKII APM tubes have good form stability at high temperature. TANKII APM forms an excellent, non-scaling surface oxide, which gives good protection in most furnace environments, i.e. Oxidising, sulphurous and carbonaceous gas, as well as against deposits of carbon, ash, etc. The combination of excellent oxidation properties and formstability makes the alloy unique.


    Chemical Content, %

    CSPMnSiCrAlFe
    Max
    0.080.0250.0200.50Max 0.720.5-23.55.8Bal

    Application:

    Typical applications for TANKII APM are radiant tubes in electrically or gas fired furnaces such as continuous galvanizing furnaces, seal quench furnaces, holding furnaces and dosing furnaces in the aluminium, zinc, lead industries, thermocouple protection tubes, furnace muffles for sintering applications.


    As a result, when APM is used to manufacture Radiant Tube Heater and the Radiant Tube, it could give very long life with any bending or oxidation happening at the surface of the heater and the tube. TANKII tubular and APM tube, when used together, will give a minimum 3 times longer life than regular radiant tube heater set. Tubular heating elements are available in standard dimensions from 68 to 170 mm (2.6 to 6.6 inch) diameter and can be supplied in almost any length. Tubular elements can be used inside all types of radiant tubes or as stand-alone elements.
