Galvanized Gabion Box For Kenya Market 2*1*1m 60*80mm
Gabion Box Description
Welded gabion baskets
The welded gabion baskets is made from electric welded wire mesh
panels connected by spirals/helicals assembled with
spacers/stiffeners.
Welded Mesh size: 100 x 100 mm (other available mesh size: 50 x
50mm,100 x 50mm and 75mm x 75mm)
Material wire: Heavy duty galvanized wire diameter from 3.0mm to
6.0mm (galfan coated wire available).
Normal Gabions size:
2.0 x 1.0 x 1.0m, 2.0 x 1.0 x 0.5m, 2.0 x 0.5 x 0.5m, 2.0 x 0.3 x
0.3m,
1.0 x 1.0 x 1.0m, 1.0 x 1.0 x 0.5m, 1.0 x 0.5 x 0.5m, 0.5 x 0.5 x
0.5m,
1.2 x 0.6 x 0.6m, etc. Required size available.

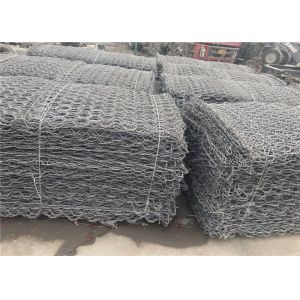

Packing: Each set is flat packed and then on pallet.

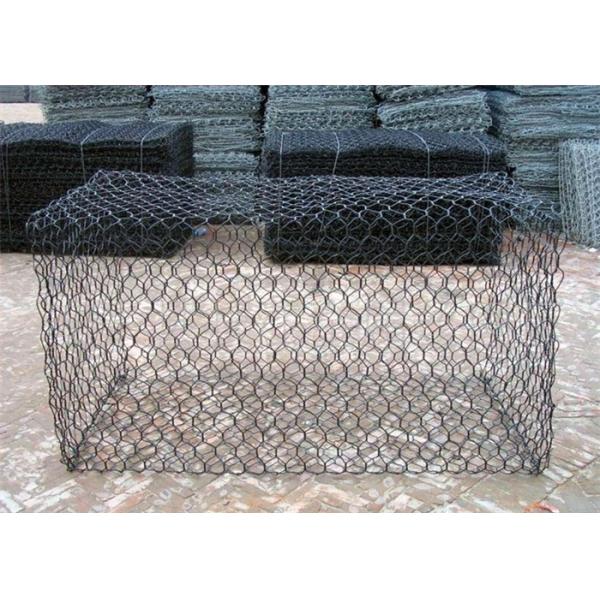

Hexagonal Gabion Box
A gabion (from Italian gabbione meaning "big cage"; from Italian gabbia and Latin cavea meaning "cage") is a cage, cylinder, or box filled with
rocks, concrete, or sometimes sand and soil for use in civil
engineering, road building, and military applications.
Material: Hot-dipped galvanized wire, Zn-5%-Al wire, Hot-dipped
galvanized wire with PVC coated, Zn-10%-Al wire.
Weaving method: it is assembled with cover pieces; side pieces and
bottom pieces are produced separately and then assembled to a
basket with lacing wire or hog rings. It is common practice to
choose a thicker wire to make selvedge wire, which can increase the
strength of the basket.
Gabion Box Specification
| Specification |
| Opening(mm) | Wire diameter metal wire(mm) | Wire diameter PVC coated/inner/outside(mm) | Strands |
| 60 X 80 | f 2.0/2.8 | f 2.0/3.0-2.5/3.5 | 3 |
| 80 X 100 | f 2.0/3.2 | f 2.0/3.2-2.8/3.8 | 3 |
| 80 X 120 | f 2.0/3.2 | f 2.0/3.2-2.8/3.8 | 3 |
| 100 X 120 | f 2.0/3.4 | f 2.0/3.0-2.8/3.8 | 3 |
| 100 X 150 | f 2.0/3.4 | f 2.0/3.0-2.8/3.8 | 3 |
| 120 X 150 | f 2.0/4.0 | f 2.0/3.0-3.0/4.0 | 3 |
Gabion Box Packing details
1) Outside with plastic film
2) In bundle
3) As per customer's special request
Gabion Box Shipping
Samples will be shipped by express service - DHL, EMS, UPS, TNT or
Fedex.
1, By counier, like DHL, PUS, Fedex, dtc. Usual 5-7 days;
2, By air to the air port, usual 3-5 days arrives;
3, By sea to the sea port, usual 25-45 days.
Gabion Box Application
1. rock fall defending
2.preventing the water and oil lost
3.controlling and leading the river and flood
4. protect the bridge
Gabion Box Process
