1R14-198 Goodyear Air Suspension Springs 566-28-3-015 566-20-7-334

1R14-198 Goodyear Air Suspension Springs 566-28-3-015 566-20-7-334

1R14-198 Goodyear Air Suspension Springs Flexmember 566-28-3-015 PISTON 566-20-7-334 ALUMINUM

1R14-198 this kind of air spring is produced by Goodyear.

We imported this kind of air spring from Amercia.

1R14-198 Goodyear OEM Cross Number:

GOODYEAR 1R14-198 / 1R14 198 / 1R14198
Flexmember Part number: 566-28-3-015;566 28 3 015;566283015

AUTOMANN:AB1DK28A-A706
CONTI:11 10 5C-16 A 706 ;11105C-16A706

CONTITECH:64628

OEM REFERENCES

FIRESTONE 1T19J-6 / 1T19J 6 / 1T19J6

FIRESTONE W01-358-8050 / W01 358 8050 / W013588050

CONTITECH 1110.5C-16A320 / 1110.5C 16A320 / 1110.5C-16A 320

Conti Tech: 1110.5E-16A320 / 1110.5E 16A320 / 1110.5E-16A 320

GOODYEAR 1R14-039 / 1R14 039 / 1R14039

Goodyear Airspg: 1R14-083

VIBROCOUSTIC V1DK28A-8050

VEHICLE OEM REFERENCES

T.W. Distribution AB8050

Watson & Chalin AS0039

Dallas Spring AS8050

Sirco AS-8050

Midland/Haldex CS114039

Euclid/Meritor Aftermarket E-FS8050

Euclid/Meritor Aftermarket FS8050

Flagg HT228

BWP M-3510

Leland SC2052

DAYTON 352-8050

HENDRICKSON S4771

HENDRICKSON B-4771

Hendrickson: 36514-13

LOADGUARD C2052

WESTAR PART 87-78050

EUCLID PART E-FS8050

AUTOMANN PART 1D28K-8050

448050-C NAVISTAR 1685174C1

Triangle Spring: 8320

Neway 57008050

Batco 10-98050

Navistar/IHC 1685174C1

Automann AB1DK28A-8050

UCF/Impex AB-1R14-039

1R14-198 Goodyear Technical parameters

❶Nut / Blind Nut

Combination Stud Air Fitting
Stud .3/4-16; Air itting- 14 NPTF

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/4-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : Air itting- 1/4 NPTF

❸ Cover Plate

Top Cover Plate Diameter: 287 mm

Bottom Piston Diameter:297 mm

❹Rubber Bellows

The Working Stroke : MIN 119 mm to MAX 457 mm

Maximum Height : 457 mm

Minimum Height :119 mm

Stroke Height : 338 mm

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-1R14-198

❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.

The drawing of air spring 1R14-198 Goodyear:

Details pictures of air spring 1R14-198 Goodyear:

Details picture of top plate of air spring 1R14-198 Goodyear:

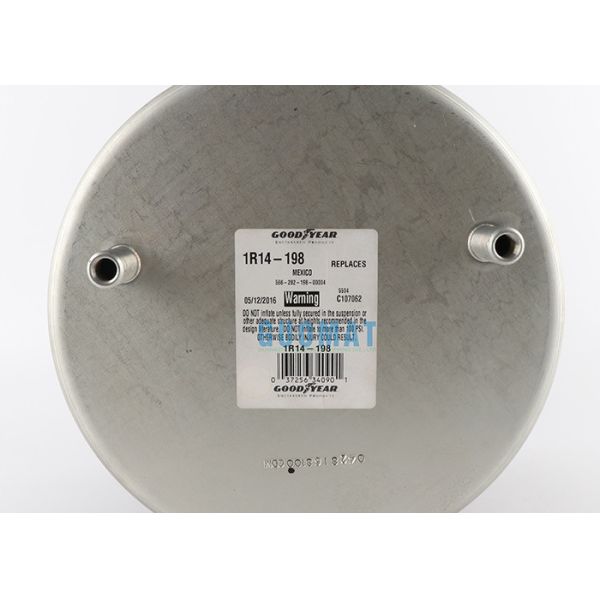

Details picture of bottom piston of air spring 1R14-198 Goodyear:

Other kinds of Goodyear air spring ​​​​​​​:
