Anchor Nail Borehole , Anchor Borehole And Root Pile Borehole

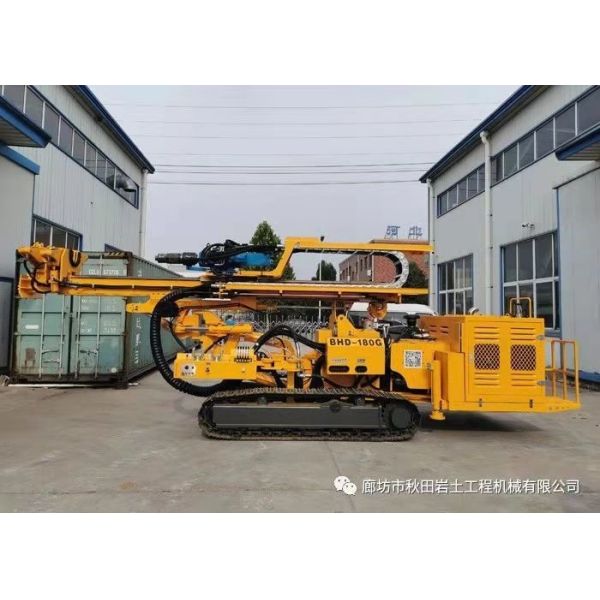

Micropile Drill Rig BHD - 180G

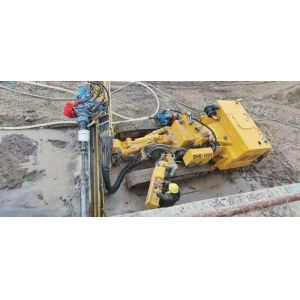

BHD-180G hydraulic anchor drilling rig with its articulation system
finds its usage at multi-position and multi-angle drilling works
with easy operation. The rotation speed of its rotary head is much
higher so that keeps its penetration speed much faster.
Product description:
The rig is powered by CUMMINS high efficiency turbocharged engine,
which is economical, practical and easy to maintain.Independent
research and development of large torque, strong impact power head,
stable and reliable work, wide range of formation
adaptation.Independently developed crawler chassis, with large
traction, variety road adaptability, smooth and reliable
tramming.Hydro-cylinder+Chain structure is adopted for feed and
pull back, with wide speed range.The hydraulic system adopts load
sensing technology, the system has higher efficiency.A wide range
of mast, multi - Angle changes, can be adapted to a variety of
different working conditions.Swing operation panel let operators to
operate the drill rig with more convenience and easiness.
Quick Detail:
* Compact design
* Easy to operate
* Multi-function application
* Long service life
Packaging and Shipping:
Payment:L/C D/A D/P T/T
Delivery Term:FOB,CFR,CIF,EX-Work,etc.
Package: As standard of manufacture
Specifications:
| Engine Model No. | QSB5.9-C180 |
| Emission level | III |
| Rated power (kW) | 132kW @2200rpm |
| Caterpillar Band Model No. | LG-135 |
| Tramming Motor | Double-speed |
| Tramming speed (km/h) | 2.1/3.0 |
| Ground pressure (N/cm2) | 5.3 |
| Gradeability (°) | 25 |
| Rotation rate at high gear (r/min) | 0~80,0-160 |
| Rotation rate at low gear (r/min) | 0~55,0-110 |
| Torque range at high gear (Nm) | 5800/11600 |
| Torque range at low gear (Nm) | 6800/13600 |
| Impact work (N・m) | 750 |
| Percussion frequency (min1) | 1350 |
| Feed stroke (mm) | 3500 |
| Feed force (kN) | 38 |
| Retraction force (kN) | 76 |
| Feed rate (m/min) | 0~16 0~63 |
| Retraction rate (m/min) | 0-8.5 0~32 |
| Feeding Pattern | Hydro-cylinder + Chain |
| Clamp range (mm) | 60-219 |
| Maximum passing diameter (mm) | 260 |
| Dimension (mm) | 6700x2280x2600 |
| Weight (T) | 11 |
