Crusher Concave Crusher Mantle
CITICIC is the leader in offering wear solutions to crusher
operators in China. We provide wear parts with designs and alloys
specifically developed for each application and specific location
within each crusher.Our crusher parts are made of manganese steel –
the toughest and most wear-resistant steel available. In addition
to the crusher components listed above, we also make cast
components for the crusher itself such as the pitman arm, side
plates, cheek plates, etc.

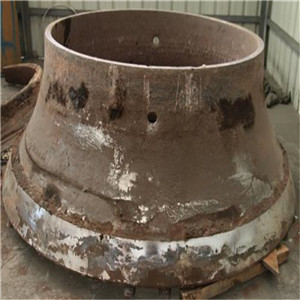

Cone crusher spare parts mantle and concave
| Product Name | Cone Crusher Concave/Mantle/Bowl Liner |
| Material | Mn13Cr2/Mn18Cr2/13%Mn/18%Mn |
| Hardness | HB 179 - 230 |
| Standard | ASTM A128/A532 AS2074 H1A/-H1B
BS 3100/ BS4844 GX 130 MnCr
SABS 407 Type 1 & 2 SCMnH1
GB/T 5680-2010 |
| Production Capacity | Produce Parts of Unit Weight from 100KG -20,000KGS PER PIECE. |
| Inspection Support | Dimension, Chemcial Composition, Metallographic, Mechanical
Character, PT/MT/UT/RT... |
Apply Materials:Cobblestone, Diabase- Service Life:4-5 Months (Pebbles)
- Certification:ISO9001:2008&SGS
- Application:Mining, Road & Bridge...
Cone crusher spare parts mantle and concave
The cone crusher spares mainly have concaves and mantles and so on.
CITICIC can manufacture numerous models of concave and mantles for
cone crusher. The materials of mantle, CITICIC use the High
Manganese, like Mn14Cr2, Mn18Cr2, Mn20Cr2, Mn22Cr2, to ensure the
wear resistance.
Cone crusher spare parts mantle and concave Advantages and Features:
1. Sophisticated processing equipment and completed inspection
facility
2. Ensure every machine and spare parts being inspected
3. CITICIC will provide with full-range service , and ensure every
customer will be followed in real time
4. Japan Advanced LOBF Direct-reading Spectrometer
5. Brinell hardness: 500-540 HBTensile Strength: 190-220MPa
6. Tensile Strength: 190-220MPa
GENERAL DESCRIPTION
Wear components for crushing processes are subjected to severe
impact and high abrasion, requiring components made from impact
resistant and abrasion resistant alloys.
We increase crusher availability through:
• Increased wear life
• Less on-going wear part maintenance
• Designs and tools for quicker change outcone crusher spare parts mantle and concave
Concave, Mantle, Mill liners, Points materials plate, locknut
CH Series - CH420, QH330, CH430, CH440, CH660, CH780, CH880
1800 Series - H2800, H3800, H4800, H6800, H7800, H8800
1000 Series - H2000, H3000, H4000, H6000, H7000, H8000
Superior® CS Series - CS420, CS430, CS440, CS660
Superior® 1800 Series - S2800,S3800, S4800, S6800
Superior® 1000 Series - S2000, S3000, S4000, S6000
Gyratory crusher wearparts:
| CITICIC through-hardened alloy concaves for maximum gyratory
crusher up-time:
Our metallurgists were the first to successfully develop
through-hardened alloy steel to replace traditional Hadfield
manganese. We also worked with major crusher manufactures to
develop safer lifting techniques for concaves • Concaves
• Mantles
• Under crusher parts
• Rim liners
• Spider caps and arm guards
• Epoxy backing material
• Chamber optimization
• Oversize mantles design
• Installation and removal optimization
• Change-out forecast |
Cone Crusher Wearparts:
| CITICIC supplies replacement wear parts to fit all major cone
crusher models, including the new high-horsepower crushers. CITICIC
cone crusher wear parts are engineered to maximize production by
retaining the feed opening throughout the part’s lifespan, and
balancing the mantle and bowl liner wear. Cone parts can be custom
fit to match any application. CITICIC’s cone crusher wear parts give you: Custom configuration ensures consistent production Long-lasting manganese steel and durable parts increase crusher
uptime Precise fitting distributes stresses across the frame for less wear
and tear on the equipmentMantles, Bowl Liner, Wear Plates, Main
Shaft Sleeves, Socket Sealing Rings |
Jaw Crusher Wearparts:
| Jaw Crusher Wearparts CITICIC replacement crusher jaws are engineered to last longer and
crush more efficiently, while reducing wear and tear on the
crusher. The crusher jaws produce better quality rock more consistently than
standard original equipment jaws, while reducing the need for
re-screening and re-crushing. CITGIC offers a full range of options
for all popular jaw crushers, including various tooth designs,
curves and alloys. CITICIC's crusher jaws give you: Machined surfaces for a consistent fit with less hassle and
downtime Large selection of tooth and curve configurations for optimum
performance in any application Unsurpassed alloys for extended wear life and lower cost per ton Toggle Plate Cheek Plate Jaw Wedges Jaw Plate |
Hammer crusher wearparts:
| Hammer crusher wearparts.
We produce Hammers in One and Two-Piece styles, Grates, Breaker
Blocks, Side Liners, Breaker Bar Sleeves, Rotor Hubs, Complete
Rotor Assemblies, Top Cover Liners and Throat Collars.•Grates • Breaker Blocks • Side Liners • Breaker Bar Sleeves • Rotor Hubs • Complete Rotor Assemblies • Top Cover Liners • Throat Collars |
Impact Crusher wearparts:
| Impact Crusher wearpartsColumbia offers Long Life VSI Anvils and Shoes designed to put more
metal in high abrasion areas for longer life between changeouts.
Other parts which are available include Feed Tubes, Feed Disks,
Table Liners, Outer Table Liners, Upper Tub Liners, Lower Tub
Liners, and Pedestal Skirt Liners.We also make long-lasting wear
parts for horizontal shaft impactors, including Standard and Heavy
Duty Impeller Bars, Curtain Liners and Liner Plates. Blow bar hammer plate liner plates |
| Roll Crusher Wearparts CITICIC produces Standard Roll Shells, although most customers
choose our Oversize and Heavy Center Roll Shells because of the
their longer life and resistance to caving. Smooth, Cleated and
Corrugated surfaces are offered. Our standard manganese steel
offers toughness and wear resistance with good weldability. We also
produce Side Plates. |
Our Services
Aftersales service
CITIC Heavy Industries is your business partner in the After
Market.
CITICIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
CITIC’s Field Service Engineers are trained specifically in the
CITIC brand group products but are capable of undertaking the
servicing of other OEM brands.
Our technicians are equipped with the most advanced technological
diagnostic equipment available to trouble shoot your equipment to
optimise performance and minimise down time.
CITICIC also has an extensive capability in supplying all you
consumable and electrical/ mechanical spare part needs.
