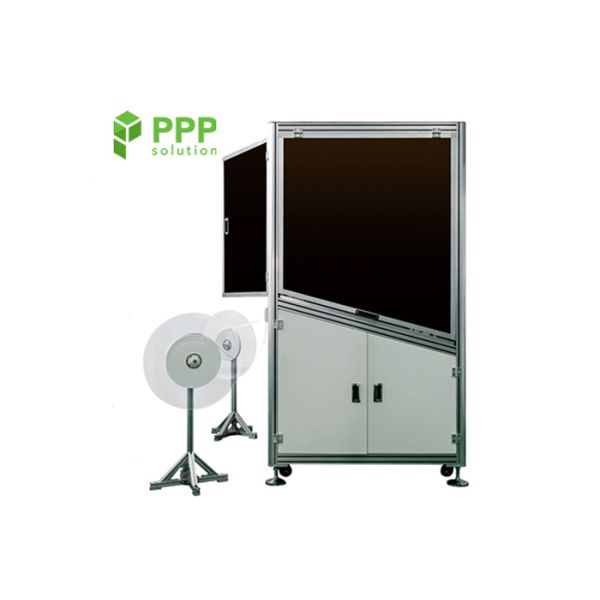

PVDF Hollow Fiber UF Membrane Welding Machine Tube PTFE Nonwoven
Fabric
Polyvinylidene difluoride PVDF Ultra filtration Tubular Membrane
Welding Machine are designed and improved based on imported
equipment. The machine is produced for welding nonwoven fabric tube
PVDF for modules, also called PVDF Hollow Fiber UF
Membrane.Polyvinylidene difluoride (PVDF) membrane filters are
mechanically strong, PVDF material hollow fibers membrane elements,
provide high performance filtration function, advantages of PVDF UF
membrane filter compared to conventional treatment such as
clarifies and media filters, are its high tolerance to feed water
quality upsets, absolute barrier and improved output stable water
quality.
Now Our machine can makes coiled pipe, welded pipe and inner
scraping film completed at one time.
Equipment dimensions: Length 1450m x width 1100 x height 2200mm
Voltage: AC 220V single-phase three-wire system
Frequency: 50/60Hz
Power: 8.3KW
Control voltage: 24V
Compressed air pressure:>0.6MPa Flow rate: 0.55m3/min
The machine can produce filter tube specifications: diameter 8mm
and diameter 12.7mm
Non-woven fabric width: 17.5mm and 24.5mm
Welding layers: 1~3 layers Support overlap and staggered soldering
It can produce tubular membranes in diameter 5mm, 6mm, 8mm, 10mm,
12.7mm etc. And non-woven fabric layers in one layer, two layer or
three layer based on customer requirements.
The machine can do two kind welding : multil-layer overlay welding
or double-layer dislocation welding.
Tubular Membrane Welding Machine is also called ultrasonic welding
machine, ultrasonic machine, welding machine. The machine adopts
ultrasonic welding, tubular membrane substrate (non-woven) welding
into infinite long tubular, cooperate with relevant coating process
to produce tubular ultrafiltration membrane.
Function Configuration Information:
1. Pneumatic Components: SMC cylinders
2.Electronically Controlled PLC: OMRON Omron
3.Operation Interface: 7″ touch screen
4.Detection Sensors: Keynes, Japan or Otis, Japan
5.Servo Motor: Ankawa ,Japan
6.Line Track: Shangyin, Taiwan
7.Besring: NSK Nippon Ernsk
