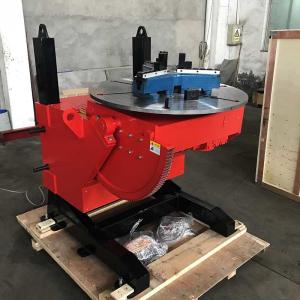

Height Adjust 3 Axis Welding Positioner, 3Tons Load Capacity Rotary
Turntable With Chuck
More products pics.pdf
Height adjsutment welding positioner can adjust the height of table
to makes the workpiece in perfect position for welding.
1. This machine is used to easy welding, can mach with welding
machine, welding manipulator etc.
2. Positioner can tilting from 0 to 120°, rotating 360° by VFD.
3. Voltage standard is 380V-3PH-50HZ, but we can make 110-575V as
per your requirement
4. This machine is controled by remote-control box, optional:
wireless remote control, foot pedal control
5. Other more special requiements pease contact us
3Ton Height Adjustment 3 Axis Welding Positioner Paremeter :
| Model | HBJ-30 |
| Load capacity | 3000kg maximum |
| Table diameter | 1400mm |
| Tilting angle | 0-90°/ 0-120° |
| Tilting speed | 0.23 rpm |
| Tilting power | 2.2 kw |
| Rotation speed | 0.05-0.5 rpm |
| Rotation power | 1.5 kw |
| Control way | Remote hand control + Foot pedal |
| Input Voltage | 110V ~ 575V Single/3 Phase 50/60Hz |
| Certificate | CE approval |
Pipe Welding Positioner Features:
1. Pipe welding positioners are used for diverse applications
ranging from pipe spooling to positioning of very large cumbersome
parts such as chassis components or structural steel.
2. Welding positioners greatly enhance productivity when welding
pipe, shafts, wheels, elbows and other fittings.
3. Along with welding turntables, pipe turning positioners are
particularly useful when rotating or positioning workpieces with
large offset loads.
4. We design and manufacture custom pipe welding positioners and
welding rotating tables that suit a variety of pipe handling
applications.
3Axis Welding Positioner Spare Parts Brand
| Rotary Turn Table Positioner Motor is from Invertek |
Welding Positioners Electric system is from Schneider |
Rotary Pipe Welding Positioners Reducer is from China brand |
Rotary Welding Positioner Inverter is from Danfoss |
| CE Certification |
Welding Positioners Application:
- Pressure vessels
- Pipe manufacturing industries
- Wind power fabrication
- Chemical & fuel storage tank fabrication
- Any heavy cylindrical job
After sale service From Weldsuccess
1. We provide 12month guaranty period for the whole machine
quality.
2. During the warranty time, any issue proved because of the
machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for
necessary.
THIS ONE WAS FOR AUSTRALIA, SO JUST SEND YOUR INQUIRY NOW.
