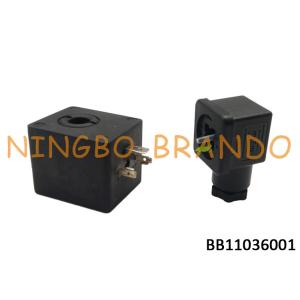

400325-117 230VAC ASCO Type Dust Collector Systerm Pulse Jet Valve Solenoid Coil

Main Dimension of 400325-142 ASCO Type Pulse Valve Coil:

The bag filter with pulse solenoid valve coils:

The bag filter is mainly based on the mechanism of inertial bumping, sieving, and interception between the filter bag and the dust particles to complete the gas-solid separation. The filter wind speed, filter function, backflushing method and cleaning criteria of this type of dust collector have a great influence on the dust removal power and resistance. Therefore, in the dust collector planning, in addition to selecting the appropriate filter material according to the characteristics of the smoke, to determine the reasonable filtration wind speed, we must pay attention to the following points in the processing and production.

1. The reversing valve and its control equipment for atmospheric anti-suction or anti-bloom cleaning are necessary. It is necessary to start in place, the action is sensitive, the operation is simple, and it is tight and airtight when closed.

2. Pulse valve, solenoid valve and pulse control appearance are selected for pulse cleaning, which requires excellent function and sensitive action, and can be operated continuously for a long time.The pulse solenoid valve we produce uses a high-quality coil that guarantees one million blows and the coil is not burned out.

3. When the inner filter is selected, the upper hanging tissue and the lower flower plate should be centered to ensure that the filter bag satisfies the straightness and the flat belt distance; the filter bag hoisting tightness should be consistent, avoiding the transition deformation of the filter bag, affecting the dust collector Normal operation.

4. When the outer filter is selected, the outer surface of the cage bone supporting the filter bag is flat and lubricated. It is certainly not allowed to have sharp arched objects or corner burrs to avoid puncturing or excessively wear the filter bag, forming a short circuit of the airflow and reducing the dust removal power.

5. The connection between the filter bag and the flower board, it is necessary to consider the convenience of disassembly and assembly when changing the bag, but also to be tight and airtight, to avoid short circuit of airflow and reduce the dust removal power.

Product Characteristic:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
