| Brand Name : | UNIFIBER-OEM |
| Model Number : | ODVASC |
| Certification : | ROHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000PCS/DAY |
| Delivery Time : | 3-5days |
Waterproof for harsh industrial or outdoor environments.
Simply slide on the waterproof cable gland to a cable for each end
that needs waterproof protection, and terminate the cable using a
fiber optic connectors like LC and SC.
Quick-release quarter-turn bayonet locking to panel mount
connector.
High current carrying capability.
Cable to cable and cable to receptacle connection.
Protective cap with tether available.
Fiber-to-the-Antenna (FTTA)
Automation and Industrial Cabling
Surveillance Systems
Broadcast
Military Communications
BBU, RRU, RRH, LTE

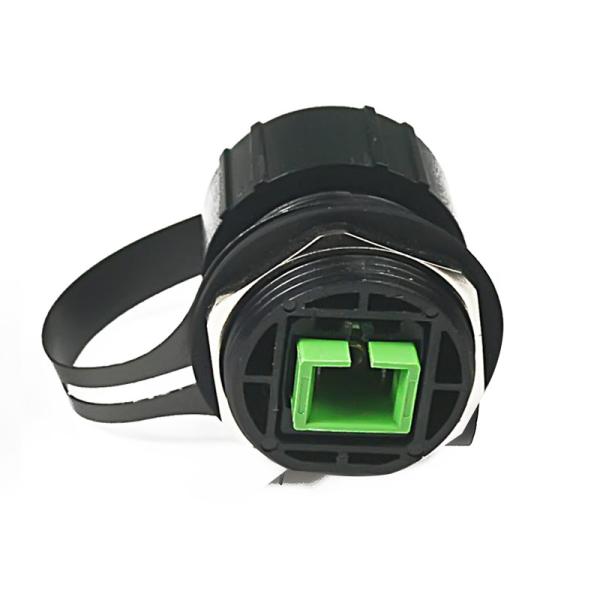

Operating Performance | Outdoor SC ODVA Waterproof Adapter | |
| PC | APC | |
| Insertion Loss (dB) | < 0.3 | < 0.3 |
| Durability (500 Mating) (dB) | < 0.1 | < 0.1 |
| Operation Temperature (°C) | -40 to 80 | -40 to 80 |
| Retention Force (N) | 200-600 | 200-600 |
| Tensile Strength (kgf) | 10 | 10 |
| Housing Material | PC | PC |
| Mounting Style | Screw/Clip | Screw/Clip |
| Sleeve Alignment Material | Ceramic (Grade A) | Ceramic (Grade A) |
| Housing Color | Black | Black |




|
