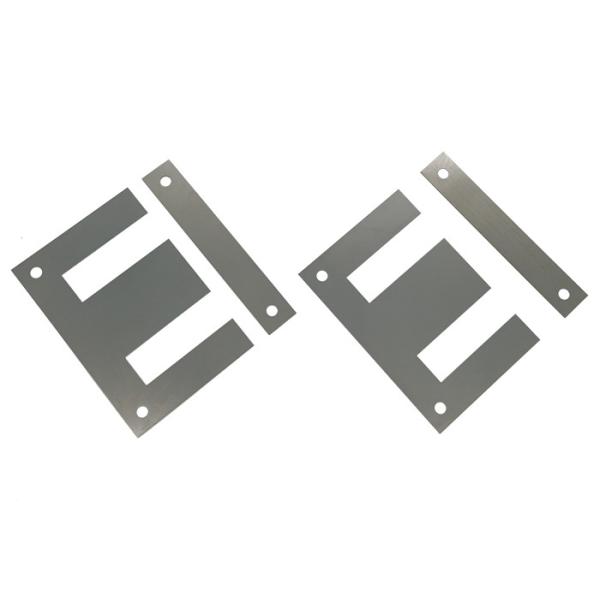

Integrated Circuit EI-42-4H 0.27mm EI Laminations

Name: Integrated Circuit EI424H 027mm EI Laminations
Brand: HengTong
Price: 1 USD

Ask Lasest Price
Brand Name :	HengTong
Certification :	CE
Model Number :	Customer settings
Price :	consultative
Delivery Time :	7-10

Add to Cart

Product Details
Company Profile

Integrated Circuit EI-42-4H 0.27mm EI Laminations

Integrated Circuit ei transformer lamination seets silicon steel cores with factory prices

The grade of silicon steel sheet is composed of two parts

Thickness and iron loss, so look at the thickness first. If it is 0.5MM, it must be non-oriented. If it is 0.35, it may be oriented or non-oriented. 0.30 / 0.27 / 0.23 are basically oriented silicon steel.

Then determine the iron loss, which needs to be measured by the instrument.

ITEM CODE	SIZE	A	B	C	D	E	F	i	K	N	d1	G
HT401	EI-42-4H	42	35	14	7	7	21	35	7	7	3.5	28
HT402	EI-48-4H	48	40	16	8	8	24	40	8	8	3.5	32
HT403	EI-54-4H	54	45	18	9	9	27	45	9	9	3.5	36
HT404	EI-57-4H	57	47.5	19	9.5	9.5	28.5	48	9.5	9.5	4	38
HT405	EI-57-4H	57	113.5	19	9.5	9.5	94.5	47.5	9.5	9.5	4.5	104
HT406	EI-60-4H	60	50	20	10	10	30	50	10	10	3.5	40
HT407	EI-66-4H	66	55	22	11	11	33	55	11	11	4.5	44
HT408	EI-67-4H	67	57.5	19	12	12	33.5	55	12	12	5	45.5
HT409	EI-75-4H	75	62.5	25	12.5	12.5	37.5	62.5	12.5	12.5	5	50
HT410	EI-76.2-4H	76.2	63.5	25.4	12.7	12.7	38.1	64	12.7	12.7	5	50.8
HT411	EI-76.2-4H	76.2	63.5	25.4	12.7	12.7	38.1	64	12.7	12.7	5.6	50.8
HT412	EI-78-4H	78	65	26	13	13	39	65	13	13	5	52
HT413	EI-78-4H非	78	67	22	14	14	39	64	14	14	5	53
HT414	EI-84-4H	84	70	28	14	14	42	70	14	14	4.5	56
HT415	EI-84-4H	84	70	28	14	14	42	70	14	14	5.5	56
HT416	EI-85.8-4H	85.8	71.5	28.6	14.3	14.3	42.9	71.5	14.3	14.3	5	57.2
HT417	EI-90-4H	90	75	30	15	15	45	75	15	15	6	60
HT418	EI-94-4H	94	81	26	17	17	47	77	17	17	6	64
HT419	EI-96-4H	96	80	32	16	16	48	80	16	16	6	64
HT420	EI-102-4H	102	85	34	17	17	51	85	17	17	6	68
HT421	EI-105-4H	105	87.5	35	17.5	17.5	52.5	87.5	17.5	17.5	6	70
HT422	EI-108-4H	108	90	36	18	18	54	90	18	18	6	72
HT423	EI-114-4H	114	95	38	19	19	57	95	19	19	7	76
HT424	EI-120-4H	120	100	40	20	20	60	100	20	20	7	80
HT425	EI-126-4H	126	105	42	21	21	63	105	21	21	6	84
HT426	EI-132-4H	132	110	44	22	22	66	110	22	22	7	88
HT427	EI-133.2-4H	133.2	111	44.4	22.2	22.2	66.6	111	22.2	22.2	7	88.8
HT428	EI-144-4H	144	124	40	26	26	72	118	26	26	7	98
HT429	EI-150-4H	150	125	50	25	25	75	125	25	25	8	100
HT430	EI-152.4-4H	152.4	127	50.8	25.4	25.4	76.2	127	25.4	25.4	8	101.6
HT431	EI-160-4H	160	150	30	30	35	80	130	35	35	8	115
HT432	EI-162-4H	162	135	54	27	27	81	135	27	27	8	108
HT433	EI-168-4H	168	140	56	28	28	84	140	28	28	9	112
HT434	EI-171-4H	171	142.5	57	28.5	28.5	85.5	142.5	28.5	28.5	9	114
HT435	EI-180-4H	180	150	60	30	30	90	150	30	30	10	120
HT436	EI-190.5-4H	190.5	158.75	63.5	31.75	31.75	95.25	158.75	31.75	31.75	8	127
HT437	EI-192-4H	192	160	64	32	32	96	160	32	32	10	128
HT438	EI-210-4H	210	175	70	35	35	105	175	35	35	10	140
HT439	EI-228-4H	228	190	76	38	38	114	190	38	38	10	152
HT440	EI-240-4H	240	200	80	40	40	120	200	40	40	10	160
HT441	EI-270-4H	270	225	90	45	45	135	225	45	45	12	180
