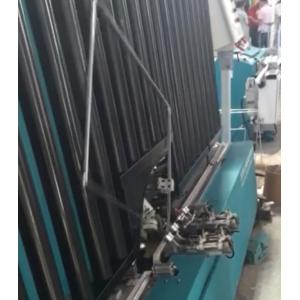

Full New Automatic Aluminum Spacer Coating Machine With Automatic
Spacer Convey
The New Butyl Extruder Machine is used for the coating of non
flexible spacer bars. The new butyl extruder coating machine consists of three parts: loading spacer section, coating section
and out section. The maximum size of the machinable spacer frame is
2500 x 2500mm. First, measure the size of the spacing frame in the input segment,
and then apply butyl glue on both sides through vertical movement
and rotation. Through PLC control, the amount of butyl rubber can
be accurately controlled.
Introduction :
Fully automatic butyl extruder machine can line with the insulating
glass assembly line to realize fully automatic production, and the
whole coating process does not need manual work. This automatic
butyl extruder machine consists of pressing wheel system (linear
pressing wheel, arc pressing wheel), centering wheel, glue nozzle
unit, extrusion unit, transmission unit, rotation mechanism,
support mechanism, frame unit, pneumatic system, hydraulic system
and control system.
Machine features:
(1) There is the alarm device, it will automatically alarm when
there is no glue (there will be a prompt on the touch screen);
(2) Timing heating function, workers can set the start-up time of
the equipment in advance, the equipment will automatically start
the system heating before the official work quickly.
(3) Automatically adjust the distance between front and back glue
nozzles according to the width of aluminum spacer.
(4) The transmission motor is controlled by servo motor, and the
transmission speed can reach up to 50m / min.
(5) Large frame support mechanism, to prevent large-scale aluminum
frame from shaking by a wide margin at the corner, resulting in
frame deformation.
(6) Simple, stable and reliable operation, precise coating effect,
fast coating speed and high production efficiency.
Parameters:
| Voltage | 3P 380+N+PE |
| Power | 8.5kw |
| Coating speed | 0~50m/min |
| Minimum spacer size | 400*400mm |
| Maximum spacer size | 2400*2200mm |
| Spacer width | 6~24mm |
| Heating temperature | 100~140°C |
| Gas pressure | 0.6 MPa |
| Extrusion pressure | 17MPa |
| System pressure | 30MPa |
| Dimension (L*W*H) | 8550×1500×3500mm |
| Weight | 3000Kg |
Layout :
