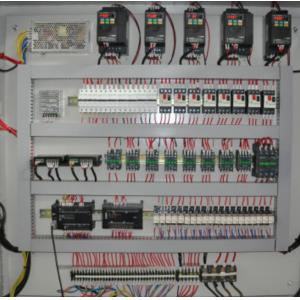

LJBZ2535 cleaning and drying section tilt vertical placement. The
control box is arranged on
the outside of the cleaning section and is easy to operate. The
cleaning section and water
tank are made of stainless steel and corrosion-resistant materials.
The conveyor roller is an
acid-proof and alkali rubber roller, which is automatically
adjusted according to the glass
thickness. The cleaning drying section adopts stepless variable
frequency speed regulation,
the glass can run smoothly at the right speed. The cleaning section
has three brushes with
high pressure water sprayers to clean, can clean low-e glass; The
drying section has a pair
of slanting blades with baffles in the middle, which automatically
adjusts the distance between
the two blades according to the thickness of the glass, ensuring
the air drying effect. The fan
is 15KW variable frequency fan, when blowing the small glass, the
fan operates under low
frequency, the wind knife only USES the lower half of the wind
knife, not only greatly reduces
the energy consumption, but also does not affect the air drying
effect.
The waterway system consists of two separate water circulatory
systems: the first stage cleaning
water system, the second stage rinsing waterway system, the glass
is washed by first grade
cleaning water, and then washed by rinsing water. The water is
pumped from the water tank and
sprayed onto the glass surface through the spray pipe. After
cleaning the glass with the brush,
the water will flow back to the water tank for recycling. The
first-level cleaning tank is equipped
with a temperature-controlled water heater, which can keep the
water temperature automatically.
In order to ensure the cleaning effect, the water conductivity must
be no greater than 40 (including
s, if the water quality is bad, need to be equipped with water
treatment equipment, water after
water treatment into the rinse water tank, recycling according to
the above steps, the water
treatment device by the user should bring along their own.
