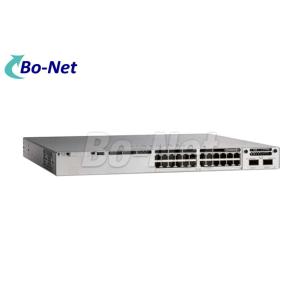

Cisco C9300 Series Network Switch C9300-24U-A 24-port UPOE, Network
Advantage With C9300-NM-8X Cisco Gigabit Switch
Product highlights:
* Highest wireless scale for Wi-Fi 6 and 802.11ac Wave 2 access
points supported on a single switch with select models
* Cis co UADP 2.0 Application-Specific Integrated Circuit (ASIC) with
programmable pipeline and microengine capabilities, along with
template-based, configurable allocation of Layer 2 and Layer 3
forwarding, Access Control Lists (ACLs), and Quality of Service
(QoS) entries
* x86 CPU complex with 8-GB memory, and 16 GB of flash and external
USB 3.0 SSD pluggable storage slot (delivering 120GB of storage
with an option SSD drive) to host containers
* USB 2.0 slot to load system images and set configurations
* Up to 480 Gbps of local stackable switching bandwidth
* Deeper buffer and higher scale model options for rich multi-media
content delivery applications
* Flexible and dense uplink offerings with 1G, Multigigabit, 10G,
25G, and 40G in the form of fixed or modular uplinks
* Easy transition from 10G to 25G with dual-rate optics
* Flexible downlink options with 1G Copper and Fiber as well as
Multigigabit links
* Leading PoE capabilities with up to 384 ports of PoE per stack, 60W
Cis co UPOE, and PoE+
* Intelligent Power Management with Cis co StackPower technology,
providing power stacking among members for power redundancy
* Line-rate, hardware-based Flexible NetFlow (FNF), delivering flow
collection of up to 64,000 flows
* IPv6 support in hardware, providing wire-rate forwarding for IPv6
networks
* Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding
table allocations, for ease of IPv4-to-IPv6 migration
* IEEE 802.1ba AV Bridging (AVB) built in to provide a better audio
and video experience through improved time synchronization and QoS
* Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock
synchronization with sub-microsecond accuracy making it suitable
for distribution and synchronization of time and frequency over
network
* Cis co IOS XE, a modern operating system for the enterprise with
support for model-driven programmability including NETCONF,
RESTCONF, YANG, on-box Python scripting, streaming telemetry,
container-based application hosting, and patching for critical bug
fixes. The OS also has built-in defenses to protect against runtime
attacks
| C9300-24U-A | Network Switch 9300 24-port modular uplinks UPOE, Network Advantage |
| Model | Total 10/100/1000, Multigigabit copper or SFP Fiber | Uplink Configuration | Default AC power supply | Available PoE power |
| Modular uplink models |
| C9300-24P | 24 POE+ | Modular Uplinks | 715W AC | 445W |
| C9300-48P | 48 POE+ | Modular Uplinks | 715W AC | 437W |
| C9300-24U | 24 Cis co UPOE | Modular Uplinks | 1100W AC | 830W |
| C9300-48U | 48 Cis co UPOE | Modular Uplinks | 1100W AC | 822W |
| C9300-24UX | 24 Multigigabit Cis co UPOE (100M, 1G, 2.5G, 5G, or 10 Gbps) | Modular Uplinks | 1100W AC | 560W |
| C9300-48UXM | 36x 100 Mbps,1G, 2.5G + 12x Multigigabit (100M, 1G, 2.5G, 5G, or 10
Gbps) | Modular Uplinks | 1100W AC | 490W |
