SCX LED High quality outdoor P8 led display screen module panel Big
led hd video wall outdoor advertising led screen
♦ Technical specification
| outdoor SMD P8 |
| Resolution/mm | 8 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 15625/m² |
| Module resolution | 40x20 |
| Module size/mm | 320x160 |
| View distance | 7-500m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/4) |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <950W |
| Average power:/㎡ | <350W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Our case
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Applications
--- Outdoor and indoor advertising, digital billboards, advertising
companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car
dealerships.
--- Architecture and social projects, information systems in
cities.
--- Show-business, concerts, festivals, motor shows and other
public events.
Product Application

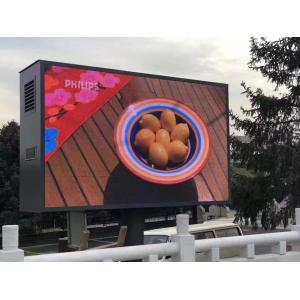

Outdoor led screen can work under the sun for high brightness and
large viewing angle with a certain function of a windbreak,
rainproof and waterproof.
Which is widely used as outdoor advertising and information media
at station, square and shopping mall.
Outdoor led screen can be divided into a pillared screen,
wall-mounted screen, and floor-standing screen, etc.
WorkShop
FAQ
Q1:Are you a factory or trading company?
A;YUYI optoelectronic co.,ltd is an OEM/ODM factory,It is also a
company integrating industry and trade.
Q2.what can you buy from us?
A:LED Display,LED Mudule,LED Screen,LED Wall,LED Display Rental
Q3: Where is your nearst port?
A : Our nearst port is shenzhen Shekou.
Q4: Are all of your products of good quality?
A: Yes, our products are of good quality, you don't have to worry
about that. And we provide 2 years' warranty.
Q65: What kind of packaging do you provide?
A: We provide flight case, wooden case and carton.
Q6: How can I select your product?
A: Firstly you need to tell us your requirement such as the viewing
distance, size, installation height, and some other details for the
LED screen that you want. And then we will give you a
recommendation.
Q7: How long will it take me to get the product?
A: We will send the goods as quick as possible, but oftenly it will
take 1-2 weeks to get the goods according to the distance ,and some
other necessary processes.
