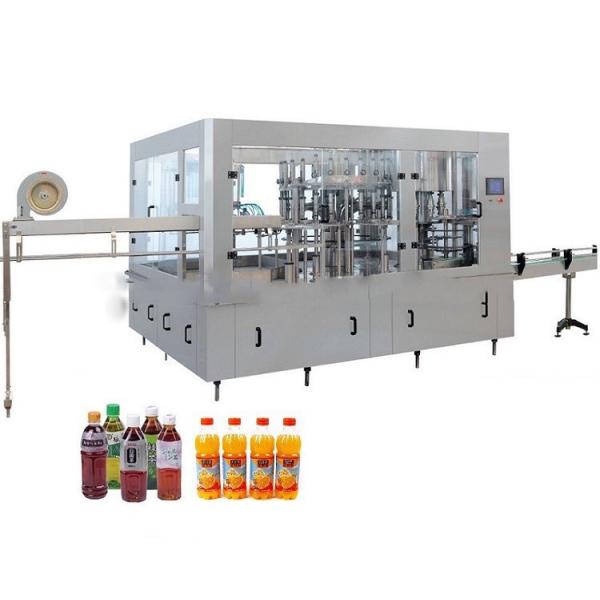

380V 50Hz Electric PET Bottle Monoblock Liquid Filling Machine

    Buy cheap 380V 50Hz Electric PET Bottle Monoblock Liquid Filling Machine from wholesalers

    Buy cheap 380V 50Hz Electric PET Bottle Monoblock Liquid Filling Machine from wholesalers
    • Buy cheap 380V 50Hz Electric PET Bottle Monoblock Liquid Filling Machine from wholesalers
    • Buy cheap 380V 50Hz Electric PET Bottle Monoblock Liquid Filling Machine from wholesalers

    380V 50Hz Electric PET Bottle Monoblock Liquid Filling Machine

    Ask Lasest Price
    Brand Name : OEM
    Certification : CE,ISO
    Price : Negotiation
    Supply Ability : 15 Sets Per Months
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    • Product Details
    • Company Profile

    380V 50Hz Electric PET Bottle Monoblock Liquid Filling Machine

    380V 50Hz Electric PET Bottle Monoblock Liquid Filling Machine

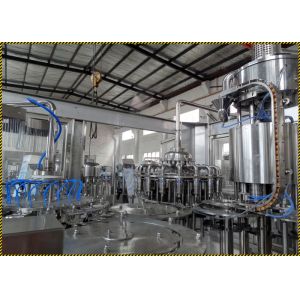

    Full line with pet bottle filling machine for fresh fruit juice

    Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.


    Features


    1. Per fect filling temperature control system.

    2. Reflux tank system has the function of supplying the material automatically.

    3. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize

    the complete CIP.

    4. Sanitary filling head system is of umbrella structure, high filling speed.

    1. Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.

    5. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.

    7. Perfect CIP system.


    Technique parameter


    Model

    18-18-6

    Productivity

    6000BPH

    Rinsing Head

    18

    Filling Head

    18

    Capping Head

    6

    Bottle Volume

    350ml~2000ml±10ml

    Bottle Diameter

    φ50-92mm

    Bottle Height

    150-310 mm

    Filling Tolerance

    ±2%

    Cap Size

    28mm and 30mm PE Standard Caps

    Air Pressure

    0.6MPa

    Air Consumption

    500 L/min

    Gas Consumption

    0.4 m3/min

    Motor Power

    6.68kW

    Voltage

    380V

    Dimension

    (L×W×H) 2450*1800*2200mm

    Weight

    3000kg

    Filling Principle

    Gravity Filling

    Specifications

    Full line with pet bottle filling machine for fresh fruit juice RCGF18-18-6
    1. juice filling machine,pet bottle filling machine
    2. 6000bph
    3. PLC control

    4. Component contact with liquid adopt SUS304
