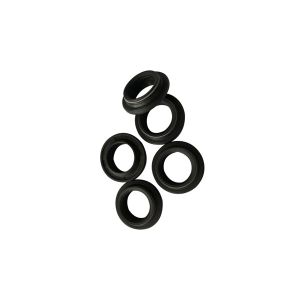

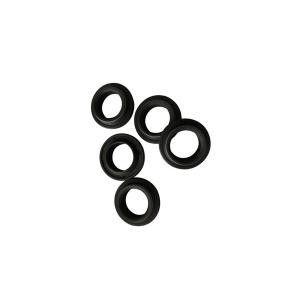

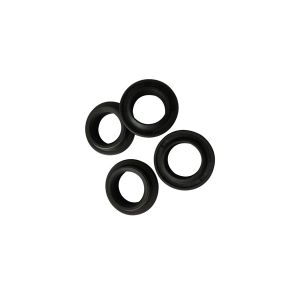

65Mn Spring NBR Oil Seal Shock With Shore A85

    Buy cheap 65Mn Spring NBR Oil Seal Shock With Shore A85 from wholesalers

    Buy cheap 65Mn Spring NBR Oil Seal Shock With Shore A85 from wholesalers
    • Buy cheap 65Mn Spring NBR Oil Seal Shock With Shore A85 from wholesalers
    • Buy cheap 65Mn Spring NBR Oil Seal Shock With Shore A85 from wholesalers
    • Buy cheap 65Mn Spring NBR Oil Seal Shock With Shore A85 from wholesalers
    • Buy cheap 65Mn Spring NBR Oil Seal Shock With Shore A85 from wholesalers

    65Mn Spring NBR Oil Seal Shock With Shore A85

    Ask Lasest Price
    Brand Name : XIAYI
    Model Number : 20*32*10/15
    Certification : IATF16949:2016
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 20,000pcs per month
    Delivery Time : Two weeks for new samples
    • Product Details
    • Company Profile

    65Mn Spring NBR Oil Seal Shock With Shore A85

    65Mn Spring Material NBR Oil Seal With Shore A 75 - 85 Tensile Strength ≥ 10 for Car Shock​

    Specifications:

    ITEMSPECTEST METHODRESULT
    MAIN LIPø11.1±0.30PROJECTOR11.052-11.088
    DUSTPROOF LIPø11.5±0.30PROJECTOR11.440-11.528
    ODø26+0.25/+0.15CALIPER26.18-26.23
    HEIGHT (1)8.5±0.20CALIPER8.37-8.43
    HEIGHT (2)11±0.30CALIPER10.83-10.94


    Description:

    Our company is specialized in producing shock absorber parts: oil seal, Piston, Rod Guide, base valve.

    piston rod, valve disc, stamping parts and other sinter parts.

    Equipment Advantages:

    Automatic Hydraulic Machines

    Automatic Mechanical Pressers

    Vacuum Furnaces

    Sintering furnace

    CNC tooling machine

    Properties:

    ITEMSPECRESULTSTANDARD
    Shore A80±582GB/T531.1
    Tensile strength≥10MPa16.92GB/T528.2
    Elongation @ break≥125%198
    Compression deformationMax+2520GB/T7759
    100℃ * 70 h Sample B type
    air oven aging testHardness change point0~+10+3GB/T3512
    Tensile strength change rateMax-205
    Elongation @ break change rateMax-40-10
    oil resisitant 100℃ * 70 h (IRM901)Hardness change point-5~+10+3GB/T1690
    Volumn change rate-10~+5-3
    oil resisitant 100℃ * 70 h (IRM903)Hardness change point-20~0-12GB/T1690
    Volumn change rate0~+3520
    Brittleness Temperature≤-40℃-45℃GB/T1682
    Rubber standard: HG/T2810-2008 WA8533


    We can also produce different valve seat with different dimensions.

    Some dimensions of compression valve seat are below:

    ØD

    ØD1

    ØD2

    Ød

    H

    H1

    H2

    h

    28

    23.8

    22.1

    16

    11

    4.3

    2.5

    3

    29.8

    25.8

    22.1

    16

    11.5

    4.3

    2.5

    3.5

    33

    28.3

    22.1

    16

    15

    7.3

    3

    4

    34

    29.1

    22.1

    17

    16

    9.5

    3.5

    4

    35

    30.8

    22.1

    16

    15

    7.3

    3

    4


    Sintered Parts
    1. Professional Fe/Cu based powder metallurgy parts manufacturer

    2. Process flow: Mixing--Compacting--Sintering--Re-sizing--ultra sonic cleaning--vacuum oiling--

    Packing

    3. High precision, low noise, wear resistance, energy saving, environment protection, high efficiency and

    low cost.

    4. High quality guarantee: electronic balance to ensure density, test equipments to ensure crushing

    strength, QC and PQC to ensure close tolerance and accurate dimension.

    5. Design ability: Developed different models of gear, bearing, bushing, structural parts etc. can

    produce according to drawings or samples.

    Applications:

    1. Automotive Part

    2. Motorcycle Part

    3. Pump Parts

    4. Locomotive Parts

    5. Machinery Parts

    6. Tool Parts

    Competitive Advantage:

    High quality guarantee:

    (1) Electronic balance ensure density

    (2) Test equipments to ensure crushing strength

    (3) QC an PQC to ensure close tolerance and accurate dimension

    Design ability:

    Develop different models of gear, bearing, bushing, structural parts etc. can produce according to

    drawings or samples.

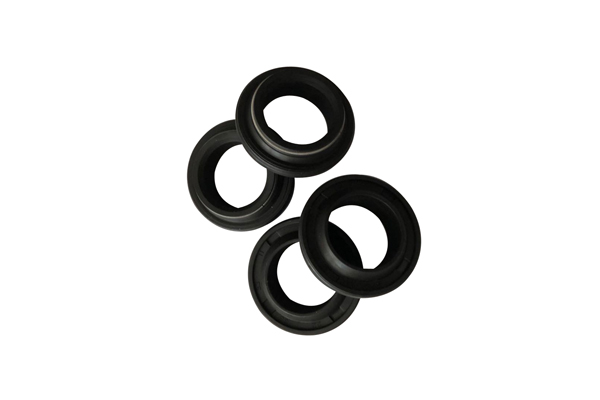

    Picture show:

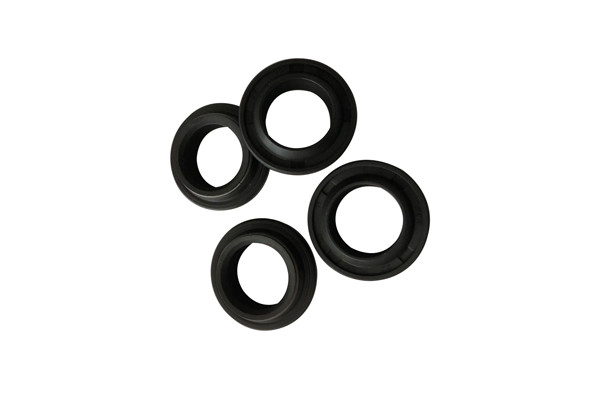

    Quality 65Mn Spring NBR Oil Seal Shock With Shore A85 for sale
