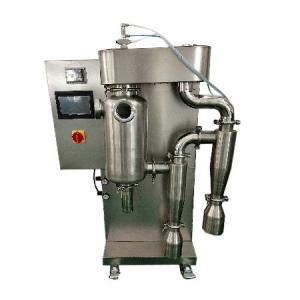

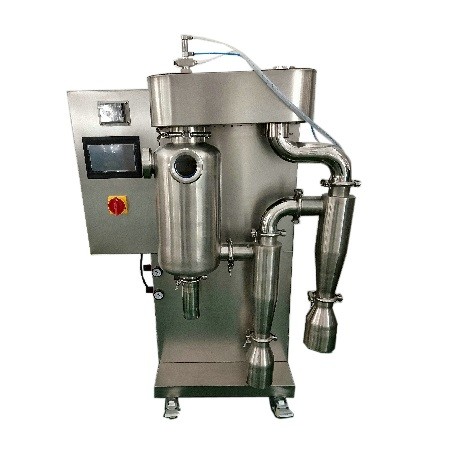

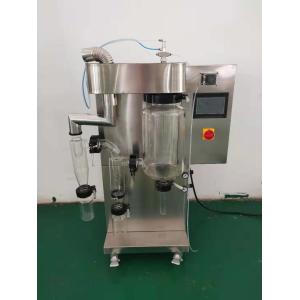

2L small spray dryer two separators for Experiment 304 stainless
steel portable for laboratory
Product description
The experimental spray dryer (small spray dryer) has a compact
design and can be placed independently
in a laboratory or placed on a specially designed stainless steel
rack. It is self-contained and can be operated
without other facilities. One-button start-up, large color LCD
touch screen operation, two operating modes, fully
automatic or manual monitoring, can be used to facilitate operation
and monitoring of the experimental process.
It is currently a spray dryer with the smallest volume, the least
noise and excellent drying effect.
Applicable scene
This product is suitable for the fields of food, pharmaceuticals,
organic and inorganic chemistry, and the development of fuel cells
for automotive and marine propulsion.
It can make milk powder, egg yolk, soy sauce, coffee, starch,
protein, hormone, serum, antibiotic, enzyme, flavor extract, wax,
dye, detergent, surfactant, pesticide, preservative, synthetic
resin, pigment, ferrite , Ceramics, copying powders, magnetic
materials, metal powders, photosensitive materials, various
industrial medicines,etc.
Product paraments
| Water evaporation | 1000mL-2000 mL/h |
| Minimum feed | 50ml |
| Liquid pump | 4 joint rotor pump (feeding tube: imported silicone peristaltic
tube)
(Optional 6-connector rotor pump) |
| Atomization | Refined two-fluid atomizing nozzle (gas-liquid)
(Optional refined plastic two-fluid atomizing nozzle) |
| Nozzle diameter | Following machine standard configuration 1.0mm
(Silicon carbide material can be selected, wear resistance is about
10 times that of stainless steel) |
| Average drying time | 1.0~1.5S |
| Temperature setting range | 30-300°C PID automatic control;(temperature can be set) |
| Temperature adjustment | Inlet temperature +19C |
| Single-phase low-noise fan | Fan flow rate; 95m3/min
Wind pressure; 1.1KPa9
(Optional imported fan from Taiwan, powerful mute function) |
| Temperature Sensor | PT-100 thermocouple |
| Spray adjustment range | 0-0.8 MPa (recommended 0.2 MPa) |
| Spray pressure air intake | 106L/min; displacement; 36L/min;input power 580W |
| Air compressor for spray | Taiwan imported Dolphin brand oil-free air compressor, quiet type |
| Ceramic electric heater | Power 3.5KW |
| Rated voltage | 220V/50HZ |
| Inlet treatment | Fiber cotton filter |
Liquid pump flow
range adjustment | 0-26m/min |
| Electric box cooling | Fan Heat of Brushless DC Motor |
| Air connection caliber for spray | Outer diameter 6mm trachea |
| Function protection | If the fan doesn't start,the heater cannot start,the air compressor
or the peristaltic pump won't start |
| Dimensions | 550(W)X650(D)X1300(H)mm |
| Device control method | Touch screen |
| Machine material/weight | 304/110KG |
