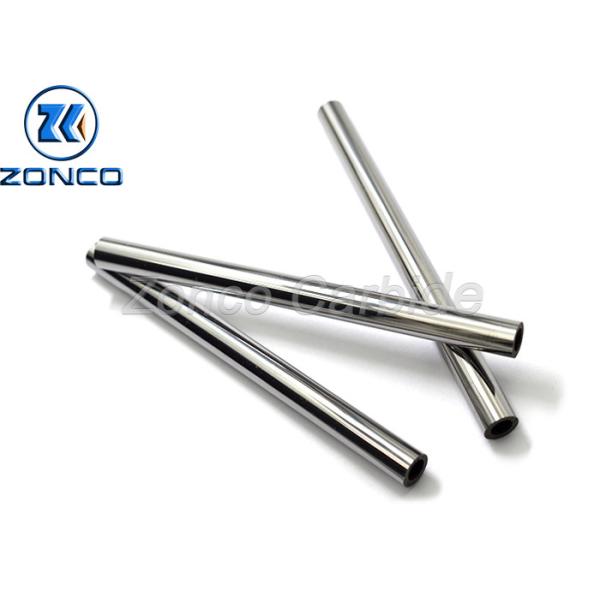

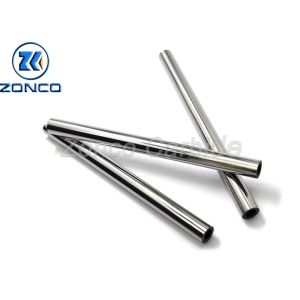

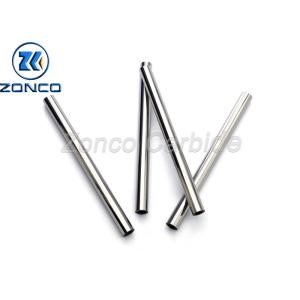

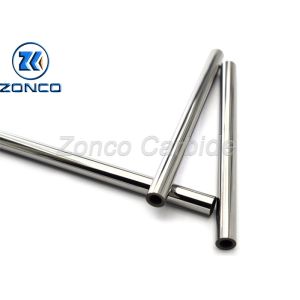

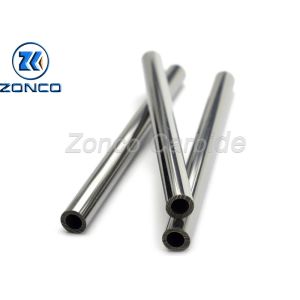

HIP Sintering Tungsten Carbide Rod Wear Resistance Tungsten Bar For
Precision Cutter
Product specification of tungsten carbide rod:
Specification: Diameter:1.5 mm x 330mm
Surface Condition: Sintered blank
Chemical Composition: WC :88.5% + Co: 10% + Others: 1.5%
Density: 14.2~14.6 g/cm3
Hardness: HRA91.5.
T.R.S.: 3200N/mm2
Recommended Grade: YG6, YG8, YG6X, YG012, YG013, YG8A etc.
Surface: stock in blank, center less blank and polished form.
Feature: Easy operation, long lifetime.
Product application of tungsten carbide rod:
Tungsten carbide rod grades are mostly fine and ultra fine grain
with high performance. It's suitable for processing of non-ferrous
metal, plastic materials, carbon fiber, chilled cast iron and
heat-resistant alloy steel, high-temperature alloy steel, stainless
steel, high manganese steel, etc. It can manufacture of drill bits,
end mills, and reamers. Tungsten carbide bushing widely used in
stamping tools and wear-resistant tools, etc.
Product feature of tungsten carbide rod:
1. Long lifetime
2. High hard wear resistance
3. Easy operation
4. Stable quality performance
5. Corrosion resistance
Material characteristics:
The non-bonding phase nano cemented carbide material is developed
for working conditions that require high wear resistance and
corrosion resistance. By using the production technology of nano
cemented carbide, the bending strength of the material can be
improved. Therefore, products made from it can improve its
resistance to damage.
Common alloy grades, physical and mechanical properties, and
recommended applications
| Grade | Physical and mechanical properties |
| density(g/cm3) | Flexural strength(N/mm2) | hardness(HRA) |
| ZG01 | 15.3-15.5 | 1200 | 95.5 |
| ZG06 | 14.8-15.1 | 2000 | 90.0 |
| ZG6X | 14.8-15.1 | 1860 | 91.8 |
| ZG6A | 14.8-15.1 | 2000 | 93.2 |
| ZG08 | 14.6-14.9 | 2200 | 89.0 |
| ZG11 | 14.3-14.7 | 2600 | 88.5 |
| ZG12X | 14.2-14.5 | 2850 | 89.5 |
| ZG15 | 13.8-14.2 | 3000 | 86.5 |
| ZG10.2 | 14.3-14.6 | 3500 | 91.5 |
| ZN06 | 14.5-14.9 | 2000 | 90.0 |
| ZN09 | 14.3-14.6 | 2300 | 89.0 |
| ZN11 | 14.0-14.3 | 2600 | 88.0 |
pictures:
Advantages:
① Advanced process design
② Specialized in production
③ Unique material properties
④ Personalized customization
⑤ Whole process quality control system
⑥ Strong supply ability guaranteed
