    S17400 17-4 PH Precipitation Hardening Stainless Steel Plate

    NAS630 Precipitation Hardening Stainless Steel plate S17400 17-4PH for Mask machine


    NAS630 S17400 17-4PH precipitation hardened stainless steel plate


    Application area:


    Mask machine

    The NAS630 S17400 17-4PH alloy is a precipitation, quenched, martensitic stainless steel, and this grade has high strength, hardness (up to 300 0 C / 5000 C) and corrosion resistance. After heat treatment, the mechanical properties of the product are more complete, and it can reach compressive strength of up to 1100-1300 mpa (160-190 ksi). This grade cannot be used above 300 0C (572 0F) or very low temperature. It has good corrosion resistance to the atmosphere and diluted acids or salts. It has the same corrosion resistance as 304 and 430.


    3/16"1/4"5/16"3/8"7/16"1/2"9/16"5/8"3/4"7/8"1"
    4.8mm6.3mm7.9mm9.5mm11.1mm12.7mm14.3mm15.9mm19mm22.2mm25.4mm
    1 1/8"1 1/4"1 1/2"1 3/4"2"2 1/4"2 1/2"2 3/4"3"3 1/2"4"
    28.6mm31.8mm38.1mm44.5mm50.8mm57.2mm63.5mm69.9mm76.2mm88.9mm101.6mm

    chemical composition:

    CCrNiCuNb/CbMn
    0.0416.54.53.30.30.7
    PREN (%Cr+3.3%Mo+16%N)≥17

    Mechanical properties

    HardenedYS 0.2%
    N/mm
    UTS
    N/mm
    Min.Typ.Min.Typ.
    A1070120711701310
    B7909319651034
    HardenedYS 0.2%
    ksi
    UTS
    ksi
    El%
    Min.Typ.Min.Typ.Min.Typ.
    A155175170190814
    B1151351401501017

    Hardened at 496 ° C (925 ° F)-4 hours-air cooled
    Hardened 593 ° C (1100 ° F)-4 hours-air cooled
    The above are two examples of heat treatment.

    NAS630 S17400 17-4PH precipitation hardened stainless steel plate

    Hardness/Temperature tempered for 4 hours after austenitizing at 1040°C (1904°F) for 30 min quenched 100°C/sec (212°F/sec).

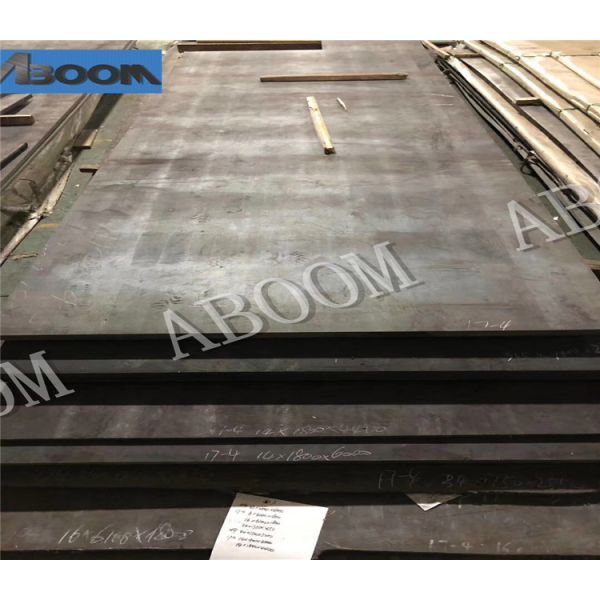

    Quality S17400 17-4 PH Precipitation Hardening Stainless Steel Plate for sale
