    Stainless Steel Wire Straightening Machine For Hook

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-RSW-3
    Certification : CE/CCC/ISO
    Price : $10000-$13000
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

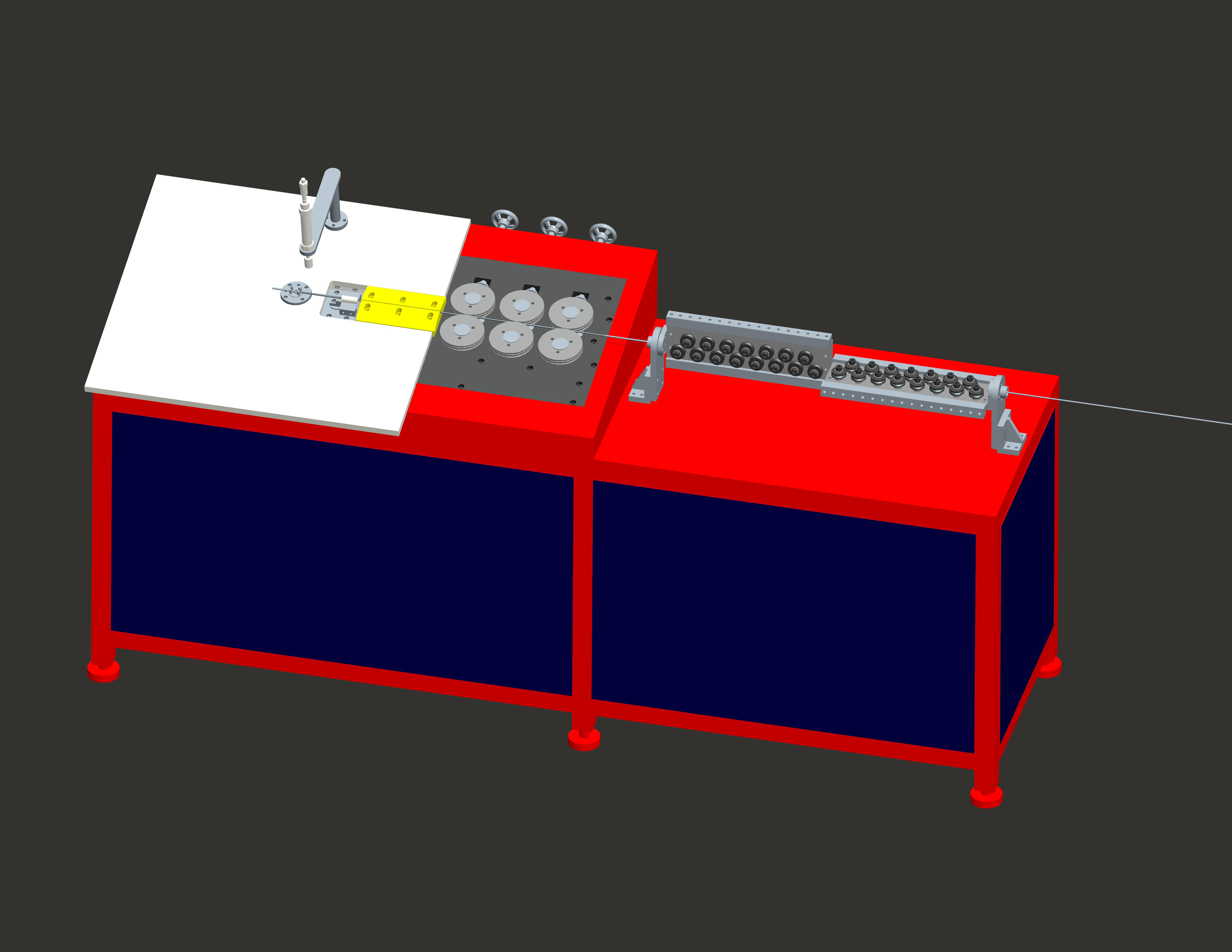

    Stainless Steel Wire Straightening Machine For Hook

    Automatic Wire Straightening Cutting, 2D Bending, Butt Welding & Automatic Discharge


    DESCRIPTION:

    1. Model:WL-RSW-3
    2. Round wire diameter: 2-8mm
    3. Output tray: length: 1.3m, height: 1m, Capacity: be able to contain 200pcs of 3m wire (about 100kg).
    4. Control panel to be placed in safe position and equipped with roller.
    5. Emergency Stop Button at the end of line.
    6. Warning signs or function signs should be placed on each part.
    7. Spare parts: cutters - 5 sets; Tool: 1 set (spanners, allen wrench and 1 pieces of wire cutting scissors)

    SPECIFICATION:


    No.ItemsData
    1Diameter range2-8mm
    2Max fixed-length3000mm
    3Spindle speed: rpm1964.5
    4Straightening speed: m/min20
    5Motor power: KW0.55×2
    6Equipment Rated Power1.2KW
    7Machine weight : KG300KG
    8External dimensions: mm2100×400×900
    9Power Line Cross Section and Switch

    1.5mm2

    15A

    10ConsumptionAir: 0.012m3/min
    11Air Pressure0.5-0.8Mpa

    MATERIAL CONFIGURATION:

    No.ItemsBrandCountry of Origin
    1Power SwitchSchneiderGermany
    2CylinderZhichengChina
    3Solenoid ValveSANWOSouth Korea
    4Three-phase Asynchronous MotorNanyangChina
    5EncoderAUTONICSSouth Korea
    6CounterAUTONICSChina
    7Frequency ConverterDeltaTaiwan

    Please check below file for better knowing of machine.

    Wire frame automatic forming machine-technical-HWA...


    APPLICATION


    Applied to Automatic Straightening and Cutting iron wire bending, welding and unloading.


    COMPETITIVE ADVANTAGE


    1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.


    2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.


    3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.


    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.


    5. Quick Delivery: Our company provides just-in-time delivery.


    6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
