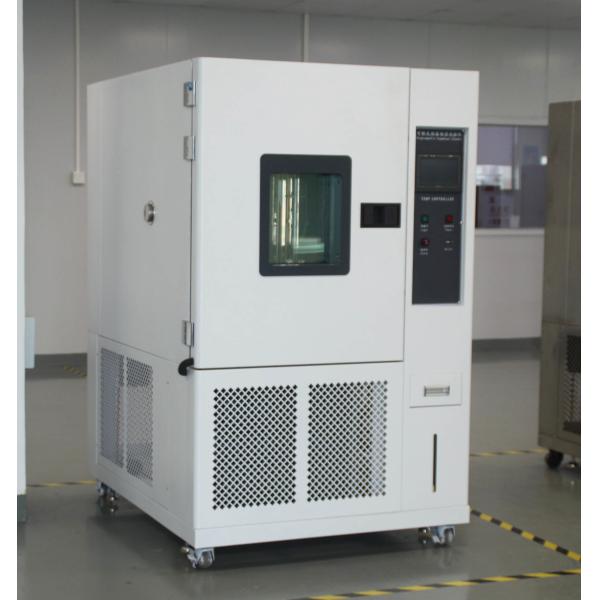

Sample Conditioning and Aging Test Cycling High Low Temperature
Humidity Chamber 225L
Sample Conditioning and Aging Test Cycling High Low Temperature
Humidity Chamber 225L is used to test the material characteristic for wire type, skin
type, plastic, rubber, cloth, Equiped with a special ventilation
regulator for maintain the fresh air inside when heating. This
testing machine design with sophisticated air-displacement
adjustment device and a digital voltage meter, current meter,
watt-hours, the timer can be used to measure the air replacement
rate. Horizontal circulatory air supply system and both sides of
airflow regulator to ensure the internal temperature uniformity and
stability.
Standards:
● GB-2423.1-2008 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test
● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test
● GJBl50.3-2009(MIL-STD-810D) High Temperature Test
● GJBl50.4-2009 (MIL-STD-810D) Low Temperature Test
● GB2423.3-2008(IEC68-2-3)Test Ca: Constant Heat Test
● GB2423.4-2008(IEC68-2—30) Test Db: Damp Heat Alternative Test
● GJBl50.9-2009 (MIL-STD-810D) Damp Heat Test
Specifications:
| Programmable Cycling High Low Temperature Climate Test Chamber 225L
Damp Heat Testing Chamber |
| Model | LY-2225 |
| Interior chamber size(mm) | W | 650 |
| H | 640 |
| D | 550 |
| Exterior chamber size(mm) | W | 1490 |
| H | 1760 |
| D | 1205 |
Temp. range Humi. range | -40°C~+150°C / -70°C~+150°C 20%~98% / 5%~98% |
| Temp. deviation | ≤ ±2.0°C (no-load) ≤ ±3.0°C (standard load) The test space temperature uniformity
reach standard after the temperature reach the setting value for 30 mins. |
| Temp. fluctuation | ±0.5°C (no-load) |
| Heating rate | from -40°C ~ +150°C average heating rate≥3°C/min(standard load) |
| Cooling rate | from +25°C ~ -40°C average cooling rate≥1°C/min(standard load) |
| Internal material | Matte stainless steel plate(SUS 304) |
| External material | Baked painting quality steel sheet |
| Insulation material | High-density rigid polyurethane foam+glass fiber wool |
| Chamber door | Single-open door, left-opening, with heating wire was installed at
the door frames to prevent condensation at low temperatures |
| Observation window | With 1 set 400*500mm (width*height) observation window installed on
the door, multi-hollow electric insulation coated glass prevent condensation
effectively |
| Lighting device | One light of 11W/AC 220V, located on observation window |
| Heater | Quality nickel-chromium alloy wire electric heaters, Non-contact
control mode (SSR) |
| Condensate outlet hole | Equipped with drainage hole and pipes for test space condensed
water and refrigeration system condensate |
| Cable hole | Two cable holes of 100mm located on both sides of the test chamber,
with rubber stopper and plastic cover |
| Sample-holder | Two layers of stainless steel sample holder. Weight bearing
30KG/layer |
| Moving casters | With 4 mobile casters (with foot cups) |
| Electrical control cabinet | Total power circuit breaker, over-temperature protection |
Exclusion-proof Function | Chamber inside and outside air-pressure balancing device,installing pressure-relief valve |
| Air outleting blower | When the chamber inside air-pressure exceeds the safety valve
pressure value, the air outleting blower automatically work-releasing the inside
pressure |
What you will get:
1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable
performance and easy operation.
3)Can simulate a wide range of temperature and humidity
environments
4)Capable of testing large components, assemblies, and finished
products
5)Customized sizes and configurations available
6)1 year free warranty
Our service:
If you face any problems in future during testing process we
promise we will give you a reply within 48 hours and solution
provide within 3 working days. We can offer operation video and
English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change
the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service: 12 months warranty. Besides, we can
help you to repair your problem controller freely, even it's not
from our factory. What you need to do is to send us the controller.
3.Commitment:We will sign a letter of commitment while we sign the
contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air
bubble film before put them into the wooden case, which not only
has good shock absorption, impact resistance, heat sealing and also
has the advantages of nontoxic, odorless, moisture corrosion, good
transparency etc.
