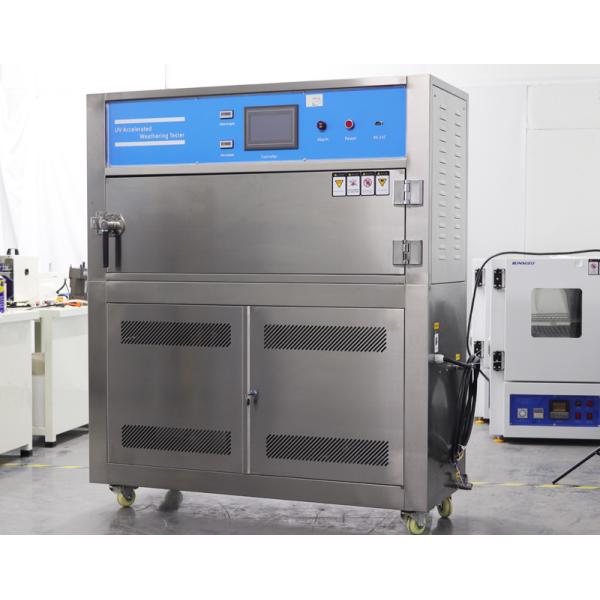

LIYI 1200mm UV Lamps Aging Test Chamber UVA340 UVB313 Ultraviolet
Light Aging Test Machine
UVA340 UVB313 Ultraviolet Light Aging Test Machine For Plastic Pipe
with 1200mm UV Lamps can provide reliable aging test data to make
the exact prediction of products’ weathering fastness(ageing
resistance)., which is conducive to sift and optimize the formula.
It is used in many industries, such as: paint, inks, resin,
plastics, printing and packaging, adhesives, auto and motorcycle
industry, cosmetics, metal, electronic, electroplating,
medicine,etc.
Designing Standard:
(1) ISO 48-3-2006, Plastics - Methods of exposure to laboratory
light sources - Part 3: Fluorescent UV lamps;
(2) ASTM D4329-2005, Standard Practice for Fluorescent UV Exposure
of Plastics;
(3) ASTM D4587-2005, Standard Practice for Fluorescent
UV-Condensation Exposures of Paint and Related Coatings;
(4) ASTM D5208-2001, Standard Practice for Fluorescent Ultraviolet
(UV) Exposure of Photodegradable Plastics, etc.
Characteristics:
1.Chamber Type UVA340 UV Accelerated Aging Chamber for Plastic
Products Big Size is designed according to uses’ operation , it’s
easy to operate, safe and reliable.
2.The thickness of specimen installation is adjustable and the
specimen installation is fast and convenient.
3.The door rotating up does not interfere with the operation and
the tester takes a very small space only.
4.It’s unique condensation system can be contented by tap water.
5.The heater is under the container rather than in the water, which
is long life, easy to maintain.
6.The water level controller is outside the box, easy to monitor.
7.The machine has truckles, convenient to move.
8.Computer programming is convenient, automatically alarming when
incorrect operated or faulted.
9.It has irradiance calibrator to extend the life of the lamp
tube(more than 1600h).
10.It has Chinese and English instruction book, convenient to
consult.
11.Divided into three types: common, light irradiance controlling,
spraying
Specifications:
| Internal Dimension WxHxD (mm) | 1300x500x500 |
| External Dimension WxHxD (mm) | 1400x1600x750 |
| Applicable Standard | GB/T16422,GB/T5170.9 |
| Temperature Range | R.T.+15°C~+70°C |
| Temperature Fluctuation | ±0.5°C |
| Humidity Range | ≥95%R.H. |
| Environmental Temperature for Use | +5°C~+35°C |
| Test Light Source | UVA,UVB UV light |
| Wave Length of Test light Source (nm) | 280~400 |
| Center Distance between Sample and Tube (mm) | 50±2 |
| Center Distance Between Tubes (mm) | 75±2 |
| Material of Internal Case | Stainless steel with sanding polish |
| Material of External Case | Stainless steel with sanding polish or painting coated |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type |
| Input | Black panel thermometer.PT-100 Sensor |
| Standard Configuration | 1 pc Stainless steel shelves |
| Safety Configuration | Protection of electric leakage, power outage when over-load,
over-temperature protection, water short storage, ground lead
protection |
| Power | AC220V 1 phase 3 lines, 50HZ |
FAQ:
1. Do you offer after-sales service? How can I ask for that? And
how about the warranty?
Every machine from our factory has a 14-month warranty after
shipment. Generally, we offer 12 months for the FREE maintenance,
while considering of sea transportation, we can extend 2 months for
our customers.
If your machine doesn’t work, you can send E-mail to us and we will
try our best to find the problem by email or skype video chat if
neccesary. After confirmation of the problem, we can send you new
spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no
stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making
a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the
machine?
Yes, of course. We can not only offer standard machines, but also
customized machines according to your requirements. And we can also
put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or
you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is
already installed, all you need to do is to connect the power cable
and start to use. And if possible, we can also install your machine
at site.
