Integral Drill Rod H19 H22 Shank Drill Steel Rod For Hand Held Rock
Dril
Tapered drill rod,another name called taper rod, tapered drill
steels, This provides a hexagonal chuck section to provide leverage
for the rotation chuck bushing. It usually has a forged collar to
maintain the proper shank striking face position in the rock drill,
and a tapered bit end.Tapered steel lengths-available from 0.6 m to
3.6 m in length-are measured from the collar to the bit end.
Shank Hexagon: 19 x108 mm, 22x 108mm, 25 x108 mm, 25 mmX159 mm 6,
7, 11, 12 degree taper in most lengths, taper degree of drill steel
is mostly imports for excellent drilling productivity.
For drilling medium-hard to hard and abrasive rock formations,Taper
angles of 11 and 12-degrees are normally used on modern drill rigs,
like our model no. PD-Y58 crawler hydraulic rock drill. Also for
Y6, Y10, Y24, YT24, Mobile rock drill pneumatic and hydraulic.

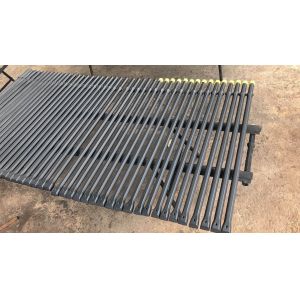

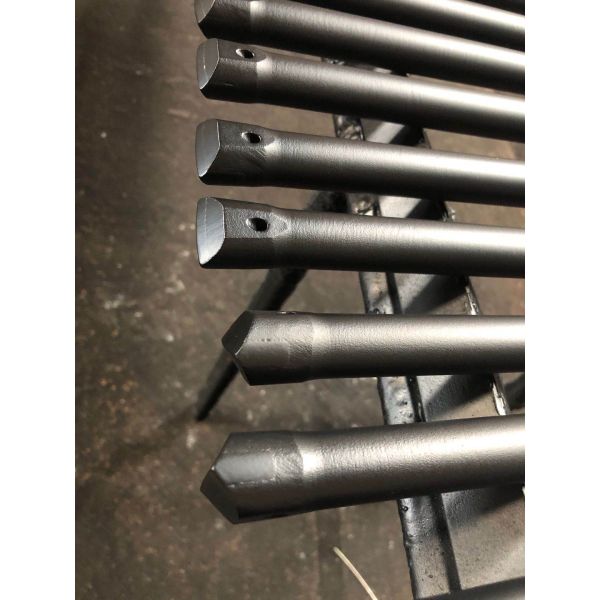

Integral drill rod or integral drill steels, integral rods are used
by hand held rock drill in granite and marble quarries, underground
mining, for small blasting hole drilling.
It can reduces the expense of impact energy, improves the drilling
speed and efficiency, also it can be used for drilling bore hole
diameter from 19mm to 41mm usually. Each rods use premium quality
alloy steel and excellent quality tungsten carbide to assure high
drilling performance.
Within the Dimensional Stone Quarrying Industry, hole sizes are
generally quite small (Ø25-34mm) and are therefore too small to
accommodate threaded equipment. H19 Chisel Bit Integral Rods with
H19 x 108mm shank are suitable for the smaller hole ranges, between
Ø25-27mm. Smallest available size is Ø23mm.
Basic Information:
Product Name: | Integral Drill Rod |
Shank | Shank 19mm x108mm, Shank22x108mm |
Diameter | 29mm-41mm |
Length | 400mm-8000mm |
Material: | High strength alloy steel |
Type | Chisel bit integral rod, Plug hole integral rod |
Color | Black or based on customer requirements. |
MOQ: | No MOQ required for testing and trial order |
| Shank Style | Length | Head Diameter |
| | Mm | foot/inch | Mm | Inch |
| Hex19 × 108mmWe can produce as your request of carbide size,
different length of drill rods. | 400 ~ 4,000 | 1' 4" ~ 13' 1" | 23 ~ 35 | 27/32 ~ 1 3/8 |
|
|
| Hex22 × 108mm | 400 ~ 9,600 | 1' 4" ~ 31' 6" | 26 ~ 41 | 1 1/32 ~ 1 39/64 |
| Hex25 × 108mm | 600 ~ 6,400 | 1' 11 5/8" ~ 21' | 33 ~ 45 | 1 19/64 ~ 1 25/32 |
| Hex25 ×159mm | 800 ~ 6,400 | 2' 7" ~ 21' | 35 ~ 42 | 1 3/8 ~ 1 21/32 |
