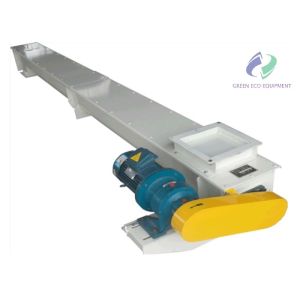

Long Distance Screw Auger Conveyor Feeder For Sand Grain Loose
Materials
Product Description
LS Type Screw Conveyoris the new generation production that replaced of the GX type screw
conveyor. The head and tail bearing have been moved outside from
housing. The LS screw conveyor is easy to install and maintain by
using sliding bearing, dust proof seal and sliding block.This
product has the advantages of high reliability, long service life
and strong adaptability.And Long Distance Screw Auger Conveyor
Feeder is designed based on LS type screw conveyor with high power,
which is much more suitable for long distance conveying bulk
materials in low cost.
It is suitable for continuously conveying loose materials such as
powder, granular and small material, including: clay powder, coal
powder, cement, sand, grain, small coal, pebble, cast iron powder,
etc.However, it is not suitable for materials with high viscosity
and easy condensation.
Main Parameters
| LS type | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
| GX type | | 200 | 250 | 300 | 400 | 500 | | | |
| Screw diameter(mm) | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
| Sc Screw pitch(mm) | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 |
| Rotate speed(r/min) | 60 | 50 | 50 | 50 | 50 | 50 | 50 | 45 | 35 |
| Capacity (m³/h) | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 |
| Pd1=10m(kw) Power | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 5.1 | 8.6 | 12 | 16 |
| Pd1=30m(kw) Power | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 |
Advantages
1. Large bearing capacity, safe and reliable.
2. Strong adaptability, easy installation and maintenance, long
service life.
3. Flexible technological arrangement, easy to be installed,
dismantled and moved, and safe operation.
4. The discharge end is equipped with cleaning device, low noise,
strong adaptability, in and out of the mouth position arranged
flexibly.
5. Excellent seal performance and transport efficiency.
6. Small screw diameter with impact structure, high rotation speed
which maintains large capacity.
7. Completely closed structure, no pollution to the environment,
the working environment has been improved.
Applicaiton
The screw conveyor is widely used for conveying powder, granule,
and small block materials, such as: cement, sand, grain, gravel,
chemical, fertilizer, coal, etc. And the shaftless screw conveyor
is suitable for continuous conveying of materials with thick, easy winding, easy
caking and poor fluidity, such as: sludge, stalk, and wood chips,
etc.
Packing & Shipping
Well-designed packing and transportation ensure that the products
can be delivered intactly to our customers.
