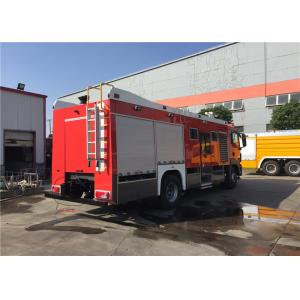

Fire Engine With Hydraulic Breaking Road-rail Convertible Vehicle
Due Use
It is a new generation of special fire fighting vehicles designed
and developed independently by our company, which combines the fire
fighting equipment needs of the fire fighting industry. The vehicle
adopts TGS18.360 chassis of German MAN company, equipped with
hydraulic track travel system, and can be equipped with traction
and installation imported compressed air foam system, compressed
air supply device, hydraulic breaking, lifting lighting and other
special equipment according to customer needs.
Chassis
Model | TGS18.360 |
Manufacturer | MAN |
Cab | TGSM standard cab |
Seat | 6 |
| Driver’s seat | Comfortable air springs seat |
| Copilot’s seat | Single adjustable seat |
Air-condition | Automatic temperature control system(R134A refrigerant, Freon-free) |
| Car window | Electric window |
| Rearview mirror | Electric heating |
Dimension data
| Overall | mm | 9850×2500×3200 |
| Front overhang | mm | 1500 |
| Wheel base | mm | 5100 |
| Rear overhang | mm | 2750 |
| Front Protraction | mm | 500 |
| Tread | mm | Front:1990 Rear:1804 |
Rail system performance
| Max. speed | Km/h | 30 |
| Lifting time on rail | S | ≤60 |
| Fold time of rail wheel | S | ≤60 |
| 0-30km/h Acceleration time | s | ≤30 |
| 0-30km/h Acceleration distance | m | ≤160 |
| 30-0km/h Braking time | s | ≤8 |
| 30-0km/h Braking length | m | ≤80 |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the
biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire
trucks, chemical fire trucks, emergency rescue vehicles, lighting
trucks, aerial ladder and platform trucks, airport fire trucks,
water tower fire trucks and other general fire trucks. The products
have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
