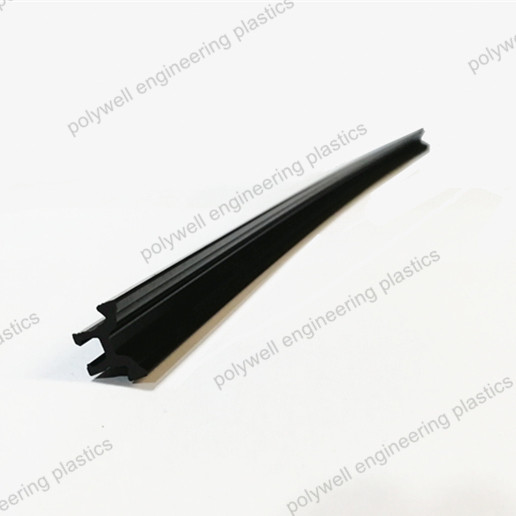

    Heat Break Product Thermal Break Material Polyamide Strip Used In Thermal Aluminum Windows And Glass Curtain Walls

    Ask Lasest Price
    Brand Name : Polywell
    Model Number : PW-CT26
    Supply Ability : 100000 meters per day
    Price : $0.20 - $1.00 / Meter
    Delivery Time : 10-15 working days
    Payment Terms : T/T
    Certification : SGS
    • Product Details
    • Company Profile

    Heat Break Product Thermal Break Material Polyamide Strip Used In Thermal Aluminum Windows And Glass Curtain Walls

    Heat Break Product Thermal Break Material Polyamide Strip Used In Thermal Aluminum Windows And Glass Curtain Walls

    Production Description

    What is thermal break material?

    A thermal break is a material with low thermal conductivity, placed in an assembly, to reduce or prevent the flow of thermal energy between the inside and outside of a building.


    What is polyamide insulation?

    Polyamide is a plastic that insulates more than 500 times better than aluminum, so thermal break profiles have a much lower Uf value – and transmit much less heat or cold. As a result, a building stays warmer in winter while keeping the heat outside more easily in summer.


    Detailed Infomation


    Structural insulating polyamide strips have been utilized for thermally breaking aluminum extrusion assemblies for over 30 years and have been in use in north america for over a decade. Polyamide strips are available with many configurations to meet different performance specifications. Creating a thermal break utilizing a polyamide strip system entails a 3 step process.

    1. Profile knurling

    2. Strip insertion

    3. Crimping

    Advantages

    high quality, competitive price, free sample support and short lead time, high mechanical strength, high toughness, high softening point, good wear resistance, self-lubrication, long-term work at higher temperatures, high CTI value, excellent electrical insulation, low smoke and toxicity characteristics.

    Product Parameters

    Name
    Specification
    Brand
    Material
    Thermal Break Strips
    I type
    Polywell
    PA66 GF25
    Item
    Unit
    GB/T 23615.1-2009
    PW-Technical specification
    Density
    g/cm3
    1.3±0.05
    1.28-1.35
    Linear expansion coefficient
    K-1
    (2.3-3.5)×10-5
    (2.3-3.5)×10-5
    Vicat softening temperature
    ºC
    ≥230ºC
    ≥233ºC
    Melting point
    ºC
    ≥240
    ≥240
    Testing for tensile cracks
    -
    No cracks
    No cracks
    Shore hardness
    -
    80±5
    80-85
    Impact strength(Unnotched)
    KJ/m2
    ≥35
    ≥38
    Tensile strength(longitudinal)
    MPa
    ≥80a
    ≥82a
    Elasticity modulus
    MPa
    ≥4500
    ≥4550
    Elongation at break
    %
    ≥2.5
    ≥2.6
    Tensile strength(transverse)
    MPa
    ≥70a
    ≥70a
    High temperature tensile strength(transverse)
    MPa
    ≥45a
    ≥47a
    Low temperature tensile strength(transverse)
    MPa
    ≥80a
    ≥81a
    Water resistance tensile strength(transverse)
    MPa
    ≥35a
    ≥35a
    Aging resistance tensile strength(transverse)
    MPa
    ≥50a
    ≥50a

    1. Sample water content less than 0.2% by weight.
    2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
    3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

    Application

    It is mainly used in insulation broken bridge aluminium products, helping to reduce heat loss or heat gain through the aluminum, and has better performance in terms of power usage.


    Our Service

    Before sales

    1. introduce products in detail
    2. recommend suitable solutions
    3. provide with reference information

    During manufacturing

    1. provide with layout and engineering conditions
    2. inform the processing status
    3. offer related documents

    After Sales

    1. provide installation, commissioning and training
    2. offer spare parts
    3. Provide with necessary technical support


    Packing & Delivery

    Packaging details:

    For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.

    For the Shape "I", "C", and some simple shapes, they can be packed in rolls. Each roll is around 400-600 meters.
    Delivery details:

    shipped in 15-20 working days after payment

    FAQ

    • About Sample

    Sample is Free, but the express fee is collect or you pay us the cost in advance.

    • About MOQ

    For the polyamide granules, MOQ is 1 ton. For the thermal break strips, MOQ is 10,000 meters.

    • About Customizing Special shape of polyamide Profiles and its period

    You can customize the special shape of polyamide strips. If we didn't meet this shape before, we will make new mold for you, and you should pay for the mold.

    • About Customizing Package Style and Marks

    You can customize the package style and marks.

    • Why your price is higher/lower than others?

    For years specializing in polyamide granules and thermal break strips has bestowed us experienced and skilled technical workers and production workers. We promise the stability of products and the high-quality of raw material. Furthermore, we can provide technical support from raw material to the final appliance. Believe in that you can get better products and service with lower price.

    • About warranty

    We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. . Any quality issue, we will deal with it immediately.
