    Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector

    Ask Lasest Price
    Brand Name : ELT (Elite)

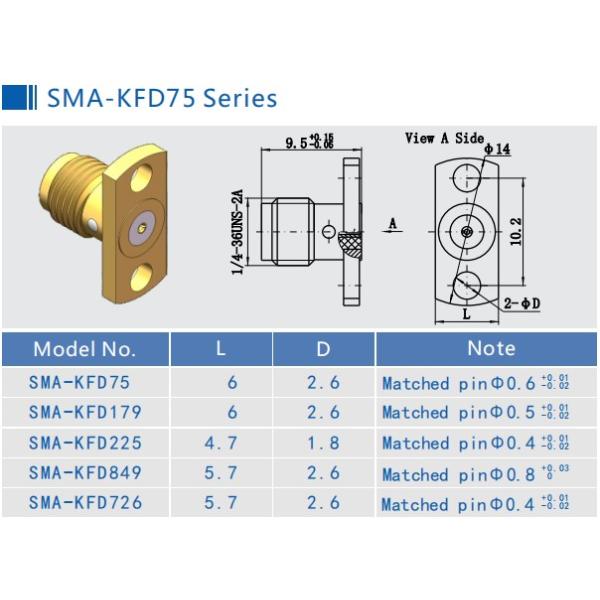

    Model Number : SMA-KFD75
    Certification : ROHS, ISO-9001-2015
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1,000,00 Pieces Per Month
    Delivery Time : Within 3-4 weeks
    • Product Details
    • Company Profile

    Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector

    Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector

    1. SMA RF connectors are available in quick connect, straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
    2. SMA RF connector is high quality and quick combinations by simply screwing 2 connectors together with no soldering or crimping required.
    3. SMA RF connectors are widely used for microwave, antennas and testing instrumentation etc.
    4. SMA RF connector are threaded-coupling with miniature size, vibration-proof and wide frequency range up to 18GHz .


    Specifiacation:

    Interface according toIEC60169-15
    Impedance50Ω
    Freqency RangeDC to 18GHz
    Insertion Loss≤0.30dB
    VSWR≤1.2(DC-6GHz)
    Insulation Resistance≥5000MΩ
    Center Contact Resistance≤3mΩ
    Outer Contact Resistance≤2mΩ
    Mating Cycles≥500
    Temperature Range-65-+165℃
    DielectricPTFE

    Application:

    * Broadband
    * Instrumentation

    * Base Station

    * Mobile communication

    * Outdoor facilities

    * Radar,microwave

    * Phased array antennas
    * Telecommunications

    * Board-to-board interconnect


    Product Cataloge:


    RF Adapter
    SMA/SSMA RF Connector
    SMP/SSMP RF Connector
    TNC RF Connector
    N Type RF Connector
    MCX/MMCX RF Connector
    BNC RF Connector
    RF Cable Assemblies
    Waveguide to Coaxial Adapter
    Glass-to-metal Hermetic Seals
    J30J Series Connector
    Microwave Rotary Joints


    More Detail of Female 4 Holes 50Ω Impedance Flange Mount SMA RF Connector/RF Coaxial Connector:



    NOTE:
    We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
