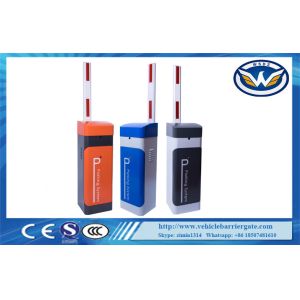

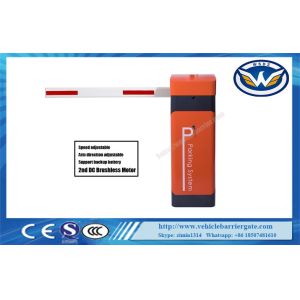

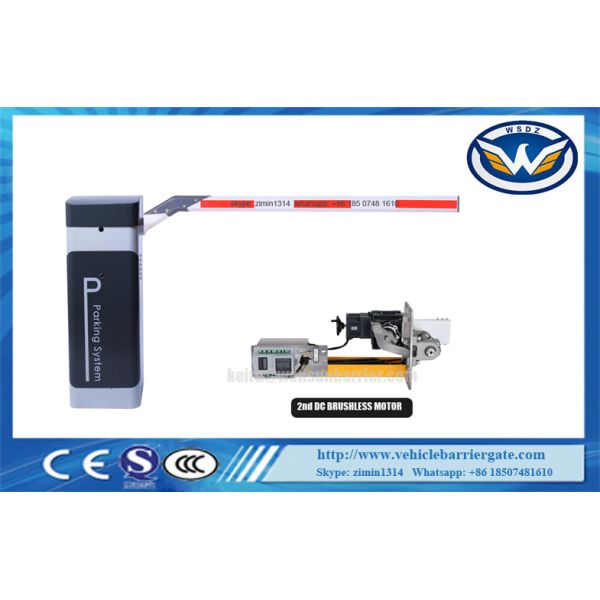

MCBF 5 Million Times DC Brushless Motor Car Parking Barriers 24V DC
Barrier Gate With Curved Arm
Type Length and Operating Speed Parameters of Sluice Bar
| Arm type | Arm Length (L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6M≥L>5M | 5S | H=0.83M |
| 5M≥L≥4.5M | 4S |
| 4.5M>L≥3M | 3S |
| 90 degree folding arm | L≤5M | 5S |
| 180 degree folding arm | L≤5M | 5S |
| Two fence arm | 5M≥L≥4M | 6S | H=0.9M |
| 4M>L≥3M | 3S |
| Three fence arm | 5M≥L≥4M | 6S | H=1.5M |
| 4M>L≥3M | 5S |
Functions:
1.Arm direction can be quickly interchanged
2. Run speed can adjust from 0.9sec to 6sec, 4sec lift max 6m arm.
3.Arm automaticlly locking when power off, then open the barrier
gate by motor wheel
4.Remote control to operate the barrier gate.
5.Auto-reverse when the boom meets obstruction.
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-intergrated with car parking system equipment,with wire
control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)
Technical parameters
4.1 Working temperature(motor): -35℃~+85℃
4.2 Rated voltage:DC24V
4.3 Running speed:1.5s-8s
4.4 Rated current:8.58A
4.5 Rated power:140W
4.6 No-load speed:1850rpm
4.7 Rated speed:1400rpm
4.8 Output Power:56.8N.m
4.9 Relative humidity:≤90%
4.10 Remote control distance:≤100M(in the open place)
4.11 IP Degree:IP44
4.12 Max length of arm:6M
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and
pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional
sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10
working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it
will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to
ship by sea. You can also choose your own shipping forwarder. it
normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate
package.
