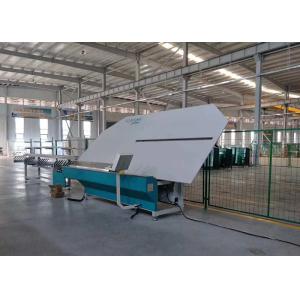

Automatic Spacer Bending Machine LJZW2020
Automatic spacer bending machine is a special equipment for making
aluminum frames of insulating glass,
which replaces the traditional fabrication technology. This
equipment can make a variety of convex polygonal
aluminum frames by one aluminum strip in one time, thus
strengthening the strength of the aluminum frame,
making the sealing effect of the insulating glass more better.
Adopt Siemens PLC control system
There are 4 Siemens servo
Adopt 12 sets of racks which could storage more different sizes of
spacers. Use Siemens servo to
change different racks.
Automatically cut and feed aluminum spacers
Bend shaped spacer frames continuously
Automatically avoid the connecting corner while bending and cutting
The machine grabs the spacer from the top instead of grabbing the
spacer from bottom, solving the
old-fashioned reversing problem.
Using industrial computer technology which could realize the
on-site drawing by workers on the industrial
computer and directly bending the drawn graphics.
The special machine hand device is used to bend big spacer frame
Heavy duty connectors is convenience and safety for installation
and debugging
Spare parts of all machine have ID codes.
Precise bending effect, corner error less than 0.1mm.
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND |
Spacer printing code function (Optional)
Automatic drill gas filling hole (Optional)
Automatic drill gas filling hole (Optional)
Bending stainless steel ( Optional)
We have the special soft system which could avoid the 120mm to reduce waste. For example, if the length
of the gusset is 60mm, when the program calculates the right angle,
there is a gusset. When you start to
bend the rectangular frame, you need firstly transport 120mm, then
cut 120mm, and then step on the
pedal to bend frame, so you will waste the 120mm.
