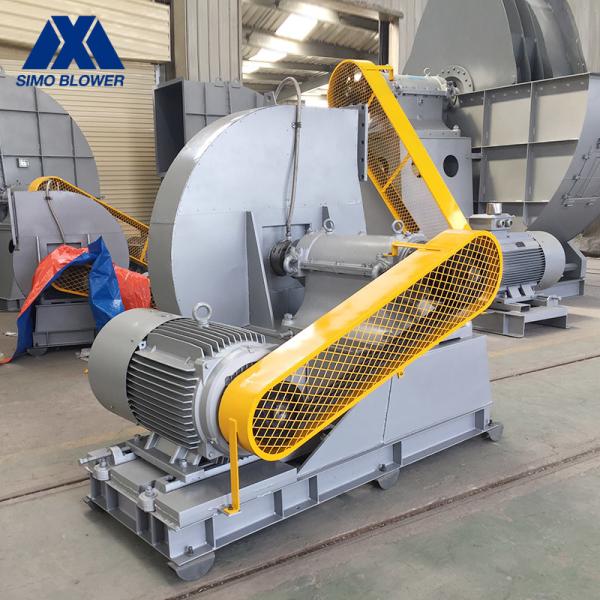

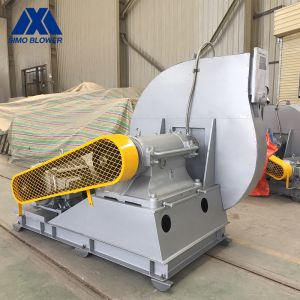

Efficient Energy-Saving V-Belt Driving Centrifugal Ventilation Fans
Introduction
Efficient Energy-Saving V-Belt Driving Centrifugal Ventilation Fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron
furnace blast performance requirements.
The fan can also be used as the blast for various furnace forging
furnaces.
Efficient Energy-Saving V-Belt Driving Centrifugal Ventilation Fans
is also suitable for conveying air and non-corrosive,
non-self-igniting, non-viscous materials or light
powder/debris/short fiber materials.
It is suitable for forced ventilation, forced cooling, blasting of
smelting furnaces and foundry furnaces, pressurization or
decompression sealing of industrial equipment.
Efficient Energy-Saving V-Belt Driving Centrifugal Ventilation Fans
can output high pressure and is suitable for any industrial
occasion where high pressure & normal temperature gas is required.
The energy transfer efficiency is high, the energy of the motor is
directly applied to the impeller, and there is no energy
consumption during the transfer.
Technical data
| Centrifugal Fan's Series | Centrifugal Fan's Model | Rotation Speed
(r/min) | Total Pressure
(Pa) | Air Capacity
(m³/h) | Power
(kW) |
|---|
| 9-03 | 8C | 2950 | 16680～17631 | 3019～8117 | 37～55 |
| 9C | 2950 | 21348～22314 | 4326～11632 | 75～110 |
Advantages and Features
1.The motor uses high-efficiency and energy-saving motors from
China's leading motor manufacturers (and can also install branded
motors required by users), with reliable quality and lower energy
consumption.
2.It is made of high quality carbon steel, stainless steel or other
metal materials are available upon request.
3. The Centrifugal Ventilation impeller is subjected to a high standard of dynamic balance
correction to ensure stable operation of the fan.
4.After the completion of production, after running test and
vibration value detection, the operation is reliable.
